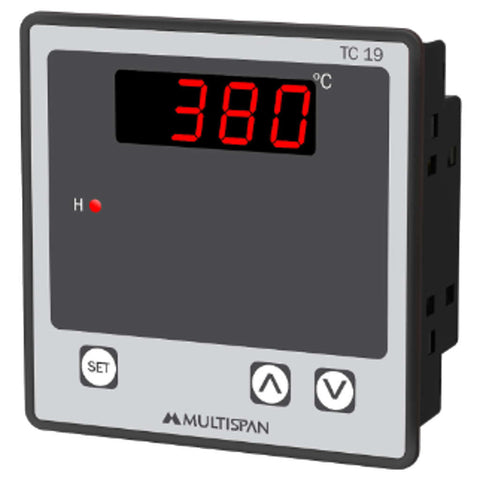

Multispan Digital Temperature Controller TC-19
Multispan Digital Temperature Controller TC-19 7970069151938PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Applications
-
Packaging Machinery
-
Extrusion Machinery
-
Furnace & Boilers
-
Ovens & Incubators
-
Food Industry
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
Brand | Multispan |
Product Type | Temperature Controller |
Product Model | TC-19 |
Input | |
Input Type | Thermocouple : ( J, K ) PT-100 2 Wire or 3 Wire |
Display Range | J: 400° C, K: 1200° C |
Accuracy | ± 1% of FSD |
ADC Resolution | 10 Bits |
Display Resolution | Thermocouple : 1°C |
Sample Rate | 6 Sample / Sec |
CJC Error | ± 2°C |
Sensor Open | All Input |
Sensor Burnout Current | 1.10uA |
RTD Excitation Current | 0.2mA |
CMRR | >120 db ( Typical ) |
Input Impedance | >1M |
Max Voltage | 20V DC |
Output | |
Control Output | |
Control Type | On-Off, TP |
Relay Control Output | |
Relay | 1 Nos. |
Rating | 5A @230V AC / 28V DC |
SSR Control Output | |
Rating | 12V DC @30mA |
Display | |
Process Value | 4 Digit 7 seg 0.56”,RED LED Display |
Keys | SET, UP, DOWN |
LED Indication | Relay |
Power Supply | |
Standard | 230V AC, ±10%,50Hz |
Consumption | 3VA |
Environmental | |
Operating Temperature | 0 to 55°C |
Storage Temperature | 0 to 70°C |
Humidity | 95% RH Non-condensing |
Protection | IP 54 ( Front Side ) |
Sensor Range | |
J | 0 to 400°C |
K | 0 to 1200°C |
PT-100 2 Wire or 3 Wire | 0 to 400°C, -50.0 to 200.0°C |
Dimension | |
Panel Cutout Dimension | 92 x 92 mm |
Dimension (HxWxD) | 96 x 96 x 43 mm |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 9.6 x 9.6 x 4.3 |
Unit of Measurement | 1 Piece |
Weight | 0.75 kg |
Generic Type | Temperature Controllers |
Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Country of Origin | India |
