SKU # 1000037886

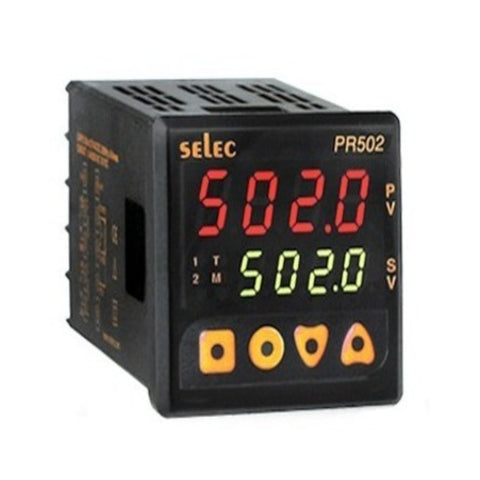

Selec Pofile Temperature Controller PR502

Selec Profile Temperature Controller PR502

Visit the Selec Store

₹ 8,411.00

Quantity

Pack Qty : 1.0



Delivery Availability
Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes. Max cart value

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Ramp / Soak Control

  • 10 Programs, 16 Steps Each

  • Alarm at Each Stage

  • Memory Retention

  • Input Type

  • Thermocouple: J, K, T, R, S, C, E, B, N, L, U, W, Platinel II RTD: Pt100 Signal Inputs (DC): -5 to 56 mV, 0 to 10 V DC, 0 to 20 mA DC

  • Accuracy

  • For TC Input : 0.25% of F.S. ±1° ; For R & S inputs : 0.5% of F.S. ±2° (20 Min Of Warm Up Time) ; For RTD Input : 0.1% of F.S. ±1°; Signal Input : ±0.5%, ± 1 digit (Expect PID500-T)

  • Control Output

  • Relay : 5A @ 230V AC / 30V DC or SSR : 18V DC, 20mA Or Current : 0/4 to 20 mA DC (max load 500E) Or Voltage : 0 to 5/10V DC (min load 10K) (Depends On Product Code Selection)

  • Auxiliary Output

  • (Maximum 2) Relay or SSR (Mode: Set point or Alarm mode) Relay : 5A @ 230V AC / 30V DC ; SSR : 12V DC,20mA

  • Optional Features

  • No. of Profiles : 10 (16 Steps Each), Ramp / Soak Time Range : 0.01 To 99.59 Hrs,Other Profile Parameters : Link Profiles, Programmable Repeat Cycle, Power Down Resume, Reset Option, Deviation Hold, Alarm At Each Step With Settable Alarm Duration, Retransmission Analog Output

Product Specification

Brand

Selec

Product Code

PR502

Product Type

Profile Temperature Controller

Size

48(W) x 48(H) x 100(D) mm

Display

4 + 4 digits, 7 Segment LED Dual display

Resolution

TC / RTD : 1 / 0.1° ; Analog Input :1 / 0.1 / 0.01 / 0.001

Set Point

Maximum 3

Control Mode

Autotune PID or ON - OFF

Supply Voltage (AC : 50 / 60 Hz)

85 to 270V AC / DC

Warranty

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Temperature Controllers

Manufacturer Details

Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com

Packer Details

Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com

Country of Origin

India
