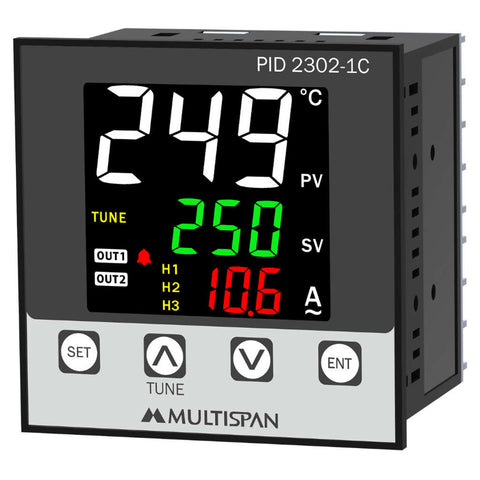

Multispan PID Controller With Ampere Indication PID-2302-1C

Multispan PID Controller With Ampere Indication PID-2302-1C

Visit the Multispan Store

₹ 2,430.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes. Max cart value

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • J/K Thermocouple Input

  • PID Controller with Ampere Indication for Various Loads

  • With Single or Three Phase CT upto 60A Rating

  • 3-Line, 3-Digit Display (SV, PV and Amp)

  • 2-Relay Output

  • Application

  • Packaging Machinery

  • Extrusion Machinery

  • Furnace & Boilers

  • Ovens & Incubators

  • Food Industry

  • Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand

Multispan

Product Type

PID Controller

Product Model

PID-2302-1C

Input Specification

Input Types

Input

Range

J

0 to 400°C

K

0 to 500°C

1 CT

0.0 to 60.0 A

Resolution

J,K = 1°C


Indication Accuracy

±1% of FSD

Display And Keys

Display

Upper: 3-Digit, 7-Seg 0.6” White LED

Middle: 3-Digit, 7-Seg, 0.3” Green LED

Lower: 3-Digit, 7-Seg, 0.39” Red LED

Keys

SET, INC, DEC, ENT

Control Method

Heating

PID control with Auto-Tuning

ON-OFF control

Cooling

BL.TP ( Blower Time Proportion)

ON-OFF control

Output Specification

Relay Output

Relay

2 Nos

Relay Type

1st Relay 1C/O & 2nd Relay (NO-C)

Rating

10A, 230V AC / 28V DC

SSR Drive Output

Output Signal

21V DC, 30mA DC

Power Supply

Supply Voltage

100 to 250V AC, 50-60Hz

Power Consuption (VA Rating)

Approx 6VA @ 230V AC

Environment Condition

Operating Temperature

0°C to 55°C

Relative Humidity

Upto 95% RH(non-condensing)

Protection Level

IP-65 (Front side) As per IS/IEC 60529 : 2001

Dimension

Panel Cutout

68 x 68 mm

Dimension(HxWxD)

72 x 72 x 85 mm

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

7.2 x 7.2 x 8.5

Unit of Measurement

1 Piece

Weight

0.75 kg

Generic Type

Temperature Controllers

Manufacturer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Packer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Country of Origin

India
