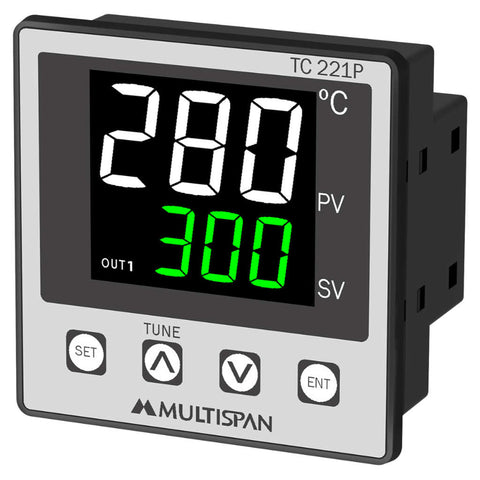

Multispan Dual Display Fix Input PID Temperature Controller TC-221P

Multispan Dual Display Fix Input PID Temperature Controller TC-221P

Visit the Multispan Store

₹ 1,550.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes. Max cart value

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Applications

  • Packaging Machinery

  • Extrusion Machinery

  • Furnace & Boilers

  • Ovens & Incubators

  • Food Industry

  • Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand

Multispan

Product Type

PID Controller

Product Model

TC-221P

Input

Input Type

Thermocouple : J

Display Range

J: 0 to 400° C

Accuracy

± 1% of FSD

ADC Resolution

10 Bits

Display Resolution

Thermocouple : 1°C

Sample Rate

6 Sample / Sec

CJC Error

± 2°C

Sensor Open

J Type Input

Sensor Burnout Current

1.10uA

RTD Excitation Current

0.2mA

CMRR

>120 db ( Typical )

Input Impedance

>1M

Max Voltage

20V DC

Output

Control Output

Control Type

On-Off, Auto tune PID

Proportional Band

0.0 to 999

Integral Time

0 to 999

Derivative Time

0 to 999

Cycl Time
For SSR

For Relay


1 sec to 99 sec

4 sec to 99 sec

Relay Control Output

Relay

1 Nos.

Rating

5A @230V AC / 28V DC
Resistive Load

SSR Control Output

Rating

12V DC @30mA

Display

Process Value

UPPER: 3 Digit 7 seg 0.80”,RED
LED Display

Set Value

LOWER: 3 Digit 7 seg 0.40”,GREEN
LED Display

Keys

SET, UP, DOWN, ENT

LED Indication

Relay , SSR

Power Supply

Standard

100 - 270V AC @ 50/60 Hz

Optional

24V DC

Consumption

4VA

Environmental

Operating Temperature

0 to 55°C

Storage Temperature

0 to 70°C

Humidity

95% RH Non-condensing

Protection

IP 54 ( Front Side)

Sensor Range

J

0 to 400°C

Physical

Enclosure

Molded ABS

Color

Black

Front Bezel

72 x 72 mm

Panel Cutout

68 x 68 mm

Depth Behind Panel

45 mm

Accessories

1 pair of Mounting clamp

Terminal Cable Size

Barrier Type terminal
Cable Size ( 2.5 mm²)

Dimension (HxWxD)

72 x 72 x 45

Weight

180 gm

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

7.2 x 7.2 x 4.5

Unit of Measurement

1 Piece

Weight

0.75 kg

Generic Type

Temperature Controllers

Manufacturer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Packer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Country of Origin

India
