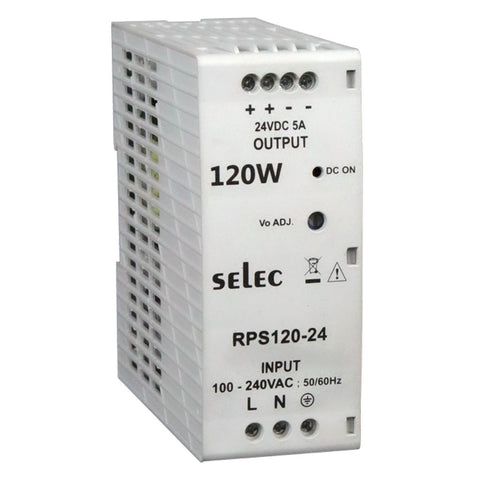

Selec Din Rail Mount Power Supply 120 W RPS120-24
Selec Din Rail Mount Power Supply 120 W RPS120-24 7956291715266![](http://www.bestomart.com/cdn/shop/t/34/assets/panid.png?v=79406228544121282611724821519)
PAN INDIA DELIVERY
![](http://www.bestomart.com/cdn/shop/t/34/assets/pre_qc.png?v=79212665365913751591724821538)
100% Genuine Products
![](http://www.bestomart.com/cdn/shop/t/34/assets/pay_sec.png?v=25498095452997473051724821521)
100% Secured Payments
Product Description
-
Supports 90 - 264 VAC / 127 - 370 VDC
-
Efficiencies up to 89 %
-
Protection against short circuit, overload, overvoltage & over temperature
-
Cooling by free air convection
-
UL 508 approved (E522848)
Product Specification
Brand | Selec |
Product Type | Power Supply |
Product Model | RPS120-24 |
Description | 120W, 24V/5A DIN rail mounted Power Supply in Plastic Housing |
Input Voltage | 90 - 264 VAC (127 - 370 VDC) |
Input Frequency | 50/60 Hz |
Inrush Current | < 48 Amps; Measured at 264 VAC, 25°C Ambient, Cold start |
Output Voltage | 12V to 48V |
Output Power | 120 W |
Voltage Tolerance | ± 1 % |
Line Regulation | < 1% of Vout |
Load Regulation | ± 1 % |
Turn On Time | < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load |
Hold Up Time | ≥60ms at 230V AC & ≥15ms at 115V AC, Full load |
Rise Time | < 100 ms |
Overload Protection | > 110% of rated output current; Hiccup type; Autorecovery |
Overvoltage Protection | Latched type; Input AC power to be recycled to recover the power supply |
Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type |
Operating Temperature | - 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C,- 25°C to 0°C start-up is guaranteed with specification deviation |
Storage Temperature | - 40°C to + 85°C |
Cooling | Natural convection cooled |
Humidity | 5 to 95 % RH, Non condensing |
Altitude | 2000 m |
Mounting | 35 mm Din rail |
Dimension (W x H x D) | 43 x 109.8 x 102.7 mm |
Weight | 350 g |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
Unit Of Measurement | 1 Piece |
Weight | 0.5 kg |
Generic Type | Power Supplies |
Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com |
Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com |
Country Of Origin | India |
