SKU # 1000131781

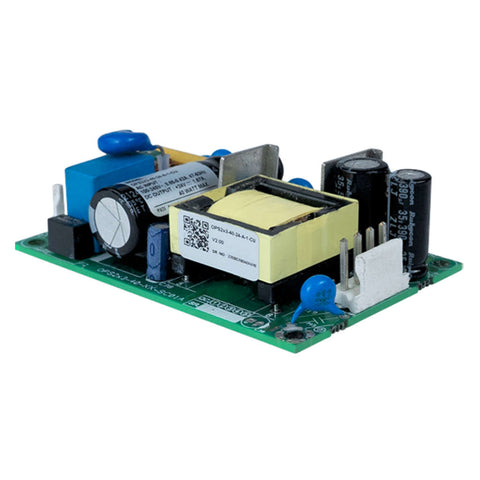

Selec Open Frame Power Supply OPS2x3-40-15-A-1-CU

Selec Open Frame Power Supply OPS2x3-40-15-A-1-CU


₹ 1,790.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 3 x 2 x 1.16 Inches Form factor

  • 40 Watts Convection

  • Efficiencies up to 86 %

  • -40 to 70°C operating temperature, Thermal Shut-Down feature

  • Medical (BF) Safety Approvals

  • Means of Protection : 2xMOPP

  • No Load Power < 0.5W

  • Class II Option Available

  • Approved to Household, ITAV and Medical standards

Product Specification

Brand

Selec

Product Type

Power Supply

Product Model

OPS2x3-40-15-A-1-CU

Description

3 x 2 x 1.16 Inches Form factor, 15V, 2.67A, 40 Watts with Convection Cooling

Input Voltage

90 - 264 VAC (127 - 370 VDC)

Input Frequency

47 - 63 Hz

Inrush Current

< 60 Amps; Measured at 264 VAC, 25°C Ambient, Cold start

No Load Power

< 0.5 W ; 115 VAC input

Output Voltage

5 V to 48 V

Output Power

40 W

Voltage Tolerance

± 1 %

Line Regulation

< 1% of Vout

Load Regulation

± 1 %

Turn On Time

< 3 sec at Full load

Hold Up Time

60ms at 230V AC & ≥15ms at 115V AC, Full load

Rise Time

< 100 ms

Overload Protection

> 110% of rated output current; Hiccup type; Autorecovery

Overvoltage Protection

Latched type; Input AC power to be recycled to recover the power supply

Output Short Circuit Protection

Hiccup mode when output is shorted; Autorecovery type

Operating Temperature

-40°C to +70°C; De-rate linearly above 50°C from 100% load at 50°C to 50% load at 70°C
Note : Only start up guaranteed at -40°C with spec deterioration

Storage Temperature

- 40°C to + 85°C

Cooling

Natural convection cooled

Humidity

5 to 95 % RH, Non condensing

Altitude

2000 m

Dimension ( L x W x H )

Overall : 3” x 2” x 1.16” ; Height above PCB : 1”

Weight

< 100 gms

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

9.6 x 9.6 x 6.2

Unit Of Measurement

1 Piece

Weight

0.5 kg

Generic Type

Power Supplies

Manufacturer Details

Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com

Packer Details

Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com

Country Of Origin

India
