SKU # 1000131787

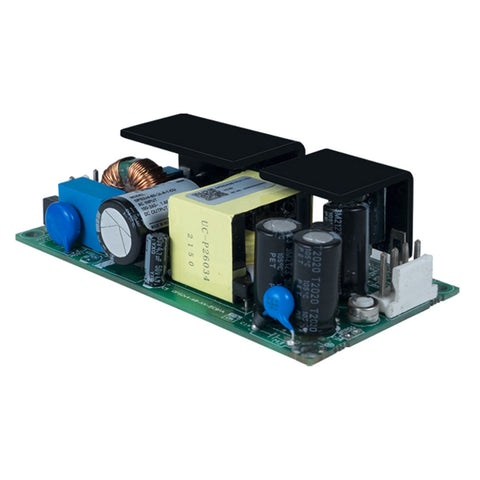

Selec Open Frame Power Supply OPS2x4-60-24-A-1-CU
![](http://www.bestomart.com/cdn/shop/t/34/assets/panid.png?v=79406228544121282611724821519)
PAN INDIA DELIVERY
![](http://www.bestomart.com/cdn/shop/t/34/assets/pre_qc.png?v=79212665365913751591724821538)
100% Genuine Products
![](http://www.bestomart.com/cdn/shop/t/34/assets/pay_sec.png?v=25498095452997473051724821521)
100% Secured Payments
Product Description
-
4 x 2 x 1.16 Inches Form factor
-
60 Watts Convection
-
Efficiencies up to 86 %
-
-40 to 70°C operating temperature, Thermal Shut-Down feature
-
Medical (BF) Safety Approvals
-
Means of Protection : 2xMOPP
-
No Load Power < 0.5W
-
Class II Option Available
-
Approved to Household, ITAV and Medical standards
Product Specification
Brand | Selec |
Product Type | Power Supply |
Product Model | OPS2x4-60-24-A-1-CU |
Description | Open Frame Power Supply with 4 x 2 x 1.16 Inches Form factor, 24V, 2.5A, 60 Watts with Convection Cooling |
Input Voltage | 90 - 264 VAC (127 - 370 VDC) |
Input Frequency | 47 - 63 Hz |
Inrush Current | < 60 Amps; Measured at 264 VAC, 25°C Ambient, Cold start |
No Load Power | < 0.5 W ; 115 VAC input |
Output Voltage | 5 V to 48 V |
Output Power | 60 W |
Voltage Tolerance | ± 1 % |
Line Regulation | < 1% of Vout |
Load Regulation | ± 1 % |
Turn On Time | < 3 sec at Full load |
Hold Up Time | ≥60ms at 230V AC & ≥15ms at 115V AC, Full load |
Rise Time | < 100 ms |
Overload Protection | > 110% of rated output current; Hiccup type; Autorecovery |
Overvoltage Protection | Latched type; Input AC power to be recycled to recover the power supply |
Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type |
Operating Temperature | -40°C to +70°C; De-rate linearly above 50°C from 100% load at 50°C to 50% load at 70°C |
Storage Temperature | - 40°C to + 85°C |
Cooling | Natural convection cooled |
Humidity | 5 to 95 % RH, Non condensing |
Altitude | 2000 m |
Dimension ( L x W x H ) | Overall : 3” x 2” x 1.16” ; Height above PCB : 1” |
Weight | < 100 gms |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
Unit Of Measurement | 1 Piece |
Weight | 0.5 kg |
Generic Type | Power Supplies |
Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com |
Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com |
Country Of Origin | India |
