LAST SOLD AT ₹ 13,620.00

SKU # 1000022904

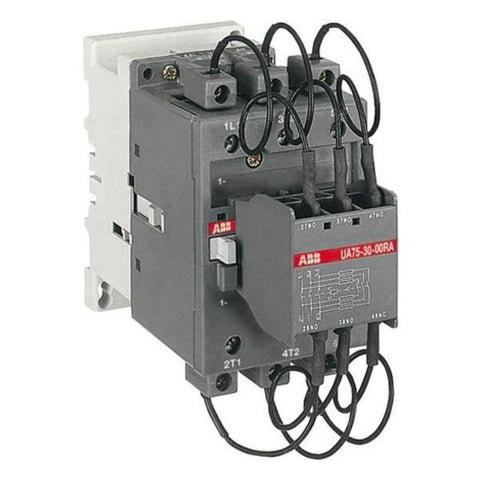

ABB AC Type Contactor Three Ploe UA75-30-00RA

ABB AC Type Contactor Three Pole UA75-30-00RA

Visit the ABB Store

₹ 13,620.00

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

UA75..RA 3-pole contactors for capacitor switching, can be used in installations in which the peak current far exceeds 100 times nominal rms current
The contactors are delivered complete with their damping resistors and must be used without additional inductances (see table below)
The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making
Number of Main Contacts NO : 3
Number of Main Contacts NC : 0
Number of Auxiliary Contacts NO : 0
Number of Auxiliary Contacts NC : 0
Rated Operational Voltage : Main Circuit 690 V
Short-Circuit Protective Devices : gG Type Fuses 200 A
Maximum Electrical Switching Frequency : 240 cycles per hour
Rated Impulse Withstand Voltage (U_imp) : 8 kV
Terminal Type : Screw Terminals
Product Net Width : 70 mm
Product Net Depth / Length : 140.4 mm
Product Net Height : 150 mm
Product Net Weight : 1.35 kg

Product Specification

Rated Voltage	Type	Product Id
24V	UA75-30-00RA	1SBL411024R8100
110V 50Hz / 110-120V 60Hz	UA75-30-00RA	1SBL411024R8400
220-230V 50Hz / 230-240V 60Hz	UA75-30-00RA	1SBL411024R8000
400-415V 50Hz / 415-440V 60Hz	UA75-30-00RA	1SBL411024R8600

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	3 Pole Contactors
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
