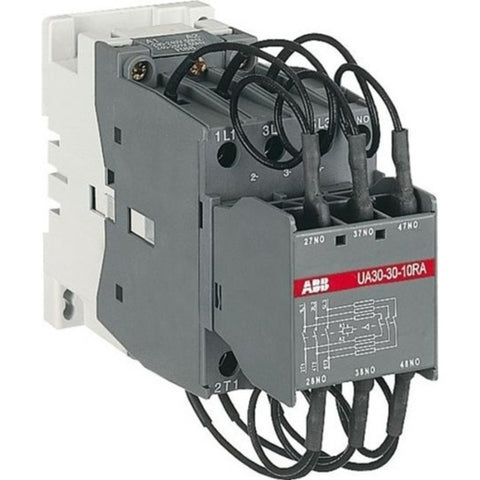

ABB AC Type Contactor Three Pole UA30-30-10RA

ABB AC Type Contactor Three Pole UA30-30-10RA

Visit the ABB Store

₹ 3,390.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • A30..RA 3-pole contactors for capacitor switching, can be used in installations in which the peak current far exceeds 100 times nominal rms current

  • The contactors are delivered complete with their damping resistors and must be used without additional inductances (see table below). The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making

  • Their electrical durability is 250 000 operating cycles for Ue < 500 V and 100 000 operating cycles for 500 V ≤ Ue ≤ 690 V

  • The UA..RA contactors are fitted with a special front mounted block, which ensures the serial insertion of 3 damping resistors into the circuit to limit the current peak on energization of the capacitor bank

  • Their connection also ensures capacitor precharging in order to limit the second current peak occurring upon making of the main poles

  • The insertion of resistors allows to damp the highest current peak of the capacitor when switching on, whatever its level

  • The UA..RA series 3-pole contactors are of the block type design

  • Main poles and auxiliary contacts: 3 main poles, 1 built-in auxiliary contact

  • Control circuit: AC operated with laminated magnet circuit

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Number of Auxiliary Contacts NC : 0

  • Rated Operational Voltage : Main Circuit 690 V , Auxiliary Circuit 690 V

  • Short-Circuit Protective Devices : Auxiliary Circuit - gG Type Fuses 10 A , gG Type Fuses 200 A

  • Rated Impulse Withstand Voltage (Uimp) : 8 kV

  • Terminal Type : Screw Terminals

  • Product Net Width : 54 mm

  • Product Net Depth / Length : 141 mm

  • Product Net Height : 130 mm

  • Product Net Weight : 0.81 kg

Product Specification

Rated Voltage

Product Id

Type

24V

1SBL281024R8110

UA30-30-10RA Coil

110V 50Hz / 110-120V 60Hz

1SBL281024R8410

UA30-30-10RA Coil

220-230V 50Hz / 230-240V 60Hz

1SBL281024R8010

UA30-30-10RA Coil

400-415V 50Hz / 415-440V 60Hz

1SBL281024R8610

UA30-30-10RA Coil

Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

3 Pole Contactors

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
