SKU # 1000021889

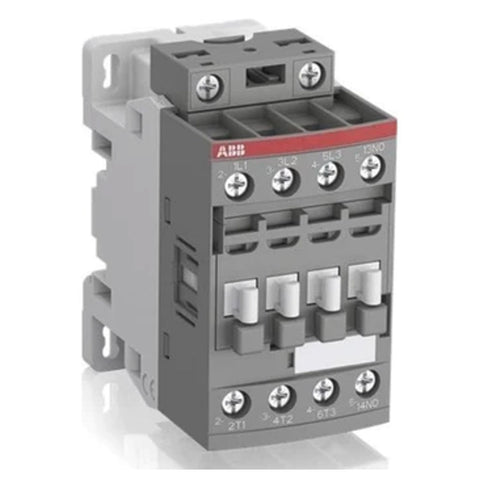

ABB DC Type Contactor Three pole AF12

Visit the ABB Store

₹ 2,560.00

Quantity



Pack Qty : 1

Delivery Availability

Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Use the coupon codes

Above ₹3,000 Use

CN100

Above ₹7,000 Use

CN150

Above ₹15,000 Use

CN200

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

AF12 contactors are used for controlling power circuits up to 690 V AC and 220 V DC
They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max
Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations
One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors
The AF... series 1-stack 3-pole contactors are of the block type design
Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1)
Control circuit : DC operated
Rated Operational Voltage : Auxiliary Circuit 690 V , Main Circuit 690 V
Rated Frequency (f) : Auxiliary Circuit 50 / 60 Hz , Main Circuit 50 / 60 Hz
Rated Insulation Voltage (U_i) : acc. to UL/CSA 600 V , acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (U_imp) : 6 kV
Maximum Mechanical Switching Frequency : 3600 cycles per hour
Terminal Type : Screw Terminals
Product Net Width : 45 mm
Product Net Depth / Length : 77 mm
Product Net Height : 86 mm
Product Net Weight : 0.27 kg

Product Specification

Rated Voltage	Product ID	Description
24-60V	1SBL157001R1110	AF12-30-10-11 24-60V50/60HZ 20-60VDC Contactor with 1NO
48-130V	1SBL157001R1210	AF12-30-10-12 48-130V50/60Hz-DC contactor with 1NO
100-250V	1SBL157001R1310	AF12-30-10-13 100-250V50/60Hz-DC contactor with 1NO
250-500V	1SBL157001R1410	AF12-30-10-14 250-500V50/60Hz-DC Contactor with 1NC
24-60V	1SBL157001R1101	AF12-30-01-11 24-60V50/60HZ 20-60VDC Contactor with 1NC
48-130V	1SBL157001R1201	AF12-30-01-12 48-130V50/60HZ-DC Contactor with 1NC
100-250V	1SBL157001R1301	AF12-30-10-13 100-250V50/60Hz-DC Contactor with 1NC
250-500V	1SBL157001R1401	AF12-30-10-14 250-500V50/60Hz-DC contactor with 1NO

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	3 Pole Contactors
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
