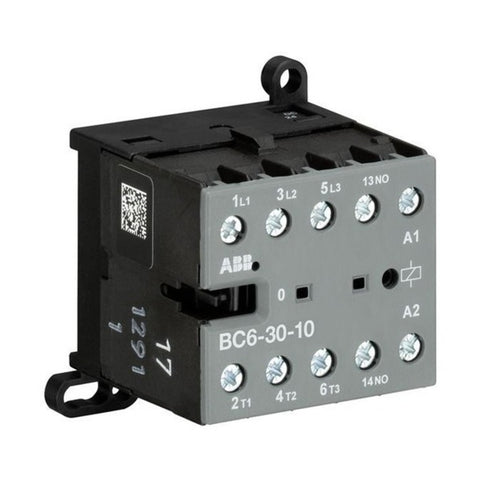

ABB DC Type Mini Contactor Three Pole BC6-30-10

Visit the ABB Store

₹ 1,760.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The BC6-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals

  • They are ideally suited for applications where reliability is a must and space is at a premium

  • Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals

  • Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting

  • Number of Poles : 4

  • Mini Contactor Type : Mini Contactor

  • Rated Insulation Voltage (Ui) : 690 V , acc. to UL/CSA 600 V

  • Number of Main Contacts NC : 0

  • Number of Main Contacts NO : 3

  • Rated Short-time Withstand Current (Icw) : at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A

  • Number of Auxiliary Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Conventional Free-air Thermal Current (Ith) : Main Circuit 20 A

  • Mechanical Durability : 10000000 cycle

  • Product Net Width : 52.5 mm

  • Product Net Height : 57.5 mm

  • Product Net Depth / Length : 46.5 mm

  • Product Net Weight : 0.175 kg

Product Specification

Type

Product ID

Rated Voltage

BC6-30-10 coil 24V DC

GJL1213001R0101

24V DC

BC6-30-10 coil 110..125V DC

GJL1213001R0104

110..125V DC

BC6-30-10 coil 220..240V DC

GJL1213001R0105

220..240V DC

Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

3 Pole Contactors

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
