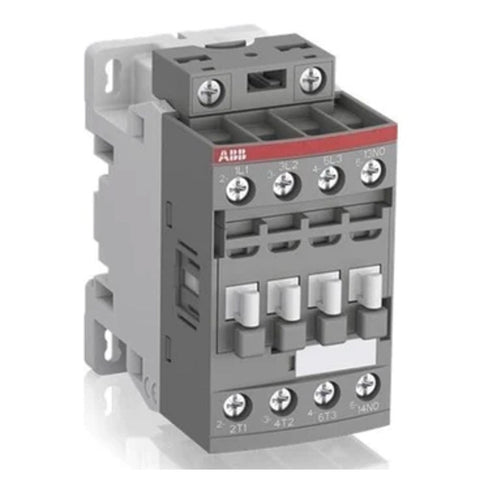

ABB DC Type Contactor Three pole AF40

ABB DC Type Contactor Three pole AF40

Visit the ABB Store

₹ 9,700.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • AF40 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads

  • AF... contactors include an electronic coil interface accepting a wide control voltage Uc min ... Uc max

  • Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations

  • One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors

  • The AF... series 1-stack 3-pole contactors are of the block type design

  • Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1)

  • Control circuit: DC Operated

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 0

  • Number of Auxiliary Contacts NC : 0

  • Rated Operational Voltage : Main Circuit 690 V

  • Rated Frequency (f) : Main Circuit 50 / 60 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 105 A

  • Rated Impulse Withstand Voltage (Uimp) : 6 kV

  • Terminal Type : Screw Terminals

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Product Net Width : 55 mm

  • Product Net Depth / Length : 111 mm

  • Product Net Height : 125.5 mm

  • Product Net Weight : 0.97 kg

Product Specification

Rated Voltage

Product ID

Description

24-60V

1SBL347001R1100

AF40-30-00-11 24-60V50/60HZ 20-60VDC Contactor

48-130V

1SBL347001R1200

AF40-30-00-12 48-130V50/60Hz-DC contactor

100-250V

1SBL347001R1300

AF40-30-00-13 100-250V50/60Hz-DC contactor

250-500V

1SBL347001R1400

AF40-30-00-14 250-500V50/60Hz-DC contactor

Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

3 Pole Contactors

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
