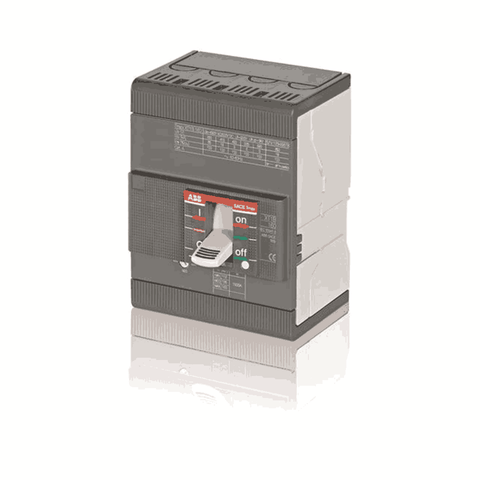

ABB Power Distribution TMax MCCB 1.6-160 A 36 KA 415 V AC Four Pole – XT2N 160 4p

₹ 13,690.00

ABB

Quantity



Pack Qty : 1

Delivery Availability

Product Description

C.Breaker Tmax Xt2n 160 Fixed Four-Pole With Front Terminals And Thermomagnetic Release
Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current.
The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.
Tmax circuit-breakers can be equipped with thermomagnetic,magnetic only or electronic trip units; all of which are interchangeable.
Product Net Width : 120 mm
Product Net Height : 130 mm
Product Net Depth / Length : 82.5 mm
Product Net Weight : 1.6 kg
Number of Poles : 4
Power Loss : at Rated Operating Conditions per Pole 4.85 W
Product Main Type : SACE Tmax XT
Product Name : Moulded Case Circuit Breaker
Product Type : CB
Version : F
Electrical Durability : 120 cycles per hour , 8000 cycle
Mechanical Durability : Nr. Operations 240 cycles per hour , Nr. Operations 25000 cycle
Terminal Connection Type : Fixed Circuit-Breakers Front

Product Specification

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	4 Pole MCCB
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
