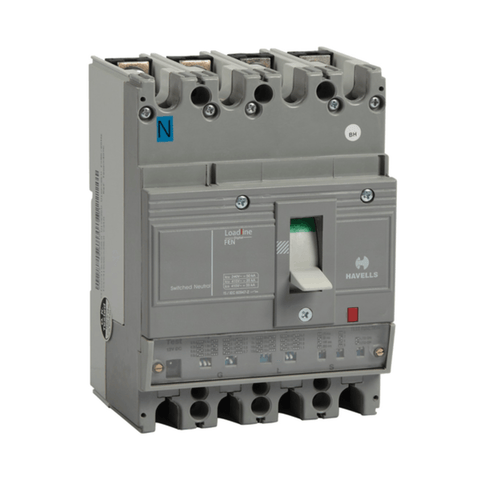

Havells Microprocessor Based MCCB Four Pole FEN Frame 35kA

₹ 17,390.00

Havells

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

Biggest Festival sale

Use the coupon codes. Max cart value

Above ₹3,000 Use

CN100

Above ₹7,000 Use

CN150

Above ₹15,000 Use

CN200

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description:

Electronic MCCB offers close,accurate & reliable protection against overload and short circuit fault

True RMS sensing

It offers precise, accurate and close protection

High repeat accuracy

It provides reliable protection

Multiple Adjustment Option

Provides Flexibility to suit various application needs.

Time delay on overload and short-circuit

Its allows for offering discrimination in the circuit.

Built in adjustable electronic overload setting (40% to 110% of In)

Enables user to do precise Overload Setting based on the load.

Built in adjustable short-circuit current setting (600% to 1000% of Ir)

Enables user to do precise Short Circuit Setting based on the load.

Built in Ground Fault Protection in Four Pole Version

Enables user to do Ground Fault Setting with respect to Time & Current

Self Powered Release

No external power required for basic functioning of the release

Field Testing Provision

Built in operation-check function which helps in externally testing the release without energising the breaker

Release setting using DIP Switches

Allows accurate setting, ensuring reliable system protection/ co-ordination

Product Specification:

Standard conformity: IEC 60947-2/IS13947-2

Rated operational voltage: 415V AC

Rated Insulation Voltage: 690V AC

Type of Release: Microprocessor Based Electronic Release

Utilisation Category: A

Rated frequency: 50/60Hz

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV

Rating Range: 25A - 250A

Type of Release: Adjustable Type

No. of Poles: Four

Breaking Capacity: Icu = 35kA, Ics = 75% of Icu

Note: # Extended terminal: In FEN Frame from (80A-250A)

Breaking Capacity Icu at 415 (kA)	Current Rating (A)	Cat. No.
35	25	IHLFENF0025
	32	IHLFENF0032
	40	IHLFENF0040
	50	IHLFENF0050
	63	IHLFENF0063
	80	IHLFENF0080 #
	100	IHLFENF0100 #
	125	IHLFENF0125 #
	160	IHLFENF0160 #
	200	IHLFENF0200 #
	250	IHLFENF0250 #

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	4 Pole MCCB
Manufacturer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Packer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Country of Origin	India
