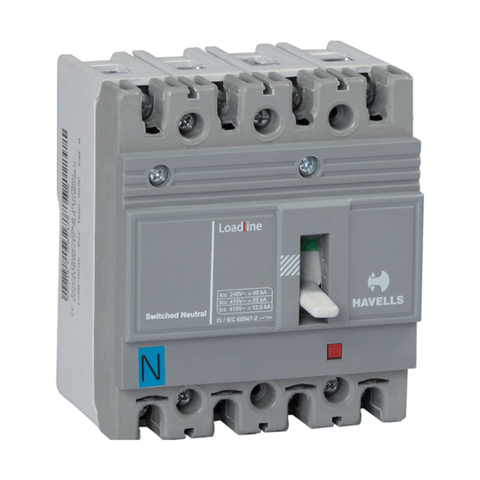

Havells Fixed Thermal and Magnetic Mccb with Four Pole GN Frame 18kA

₹ 4,620.00

Havells

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

Biggest Festival sale

Use the coupon codes. Max cart value

Above ₹3,000 Use

CN100

Above ₹7,000 Use

CN150

Above ₹15,000 Use

CN200

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description:

Overload Setting is Fixed and Short Circuit Setting is minimum 10 times of Rated Current.

Compact Size & Double Insulation

Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

Can be used as an Isolator

In 4Pwsn version, Neutral makes first & breaks last

Provision for addressing Residual Current in the Circuit.

Provision of Push to tip button

It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

Depicts the ON/OFF status of the breaker

Suitable for DC application

Offers choice of system usage

Wide range of accessories available

Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Product Specification:

Standard conformity: IEC 60947-2/IS:13947-2

Rated operational voltage: 500V AC

Rated Insulation Voltage: 750V AC

Type of Release: Thermomagnetic

Utilisation Category: A

Rated frequency: 50/60Hz

Ambient temp: 400C (500C on request)

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV

Rating Range: 25A - 160A

Type of Release: Fixed Type

No. of Poles: Four

Breaking Capacity: Icu = 18kA, Ics = 100% of Icu

Note: # Extended Terminals:In G-Frame from (80A to 160A)

Breaking Capacity Icu at 415V (kA)	Current Rating (A)	Frame	Cat. No.
18	25	GN	IHLGNF0025
	32		IHLGNF0032
	40		IHLGNF0040
	50		IHLGNF0050
	63		IHLGNF0063
	80		IHLGNF0080 #
	100		IHLGNF0100 #
	125		IHLGNF0125 #
	150		IHLGNF0150 #
	160		IHLGNF0160 #

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	4 Pole MCCB
Manufacturer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Packer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Country of Origin	India
