Havells Moulded Case Circuit Breaker Four Pole 85kA 300-400A HIM 400

₹ 37,700.00

Havells

Quantity



Pack Qty : 1

Delivery Availability

Product Description

Adjustable Thermal & Fixed Magnetic Settings
Overload Setting is Adjustable (80-100)% and Fixed Magnetic Setting available
Ics= Icu =100%
Service breaking capacity, 100% x Icu is realized by enlarging breaking capacity with internal limit current device
Compact Size & Robust Design
Compact Reliable, high performance and Robust design of Moulded case circuit breaker with double protecting layer of Insulation
Maximized Insulation Performance
Rated Insulation Voltage Ui: 1000 V, Rated Operation voltage Ue: 690 V
Cable Insulation Performance Suitability
In case of of continuing abnormal conditions such as welding of main contact after tripping, handle is not available to move from OFF position in accordance with IEC 60947-2 cable insulation performance
Also, it is possible to maintain easily by checking a contact condition by the handle
Adjustable Rated Current
As applying to adjustable rated current design, it is possible to protect circuit optimally according to the load factor
Available to Various Low Voltage System Protections
It is available to adapt various low voltage system protections such as ‘Discrimination’ and ‘Cascading’ with limit current characteristic and high breaking capacity
Positive Dolly Position Indication
Depicts the ON/OFF status of the breaker
Conforms to IS/IEC60947-2

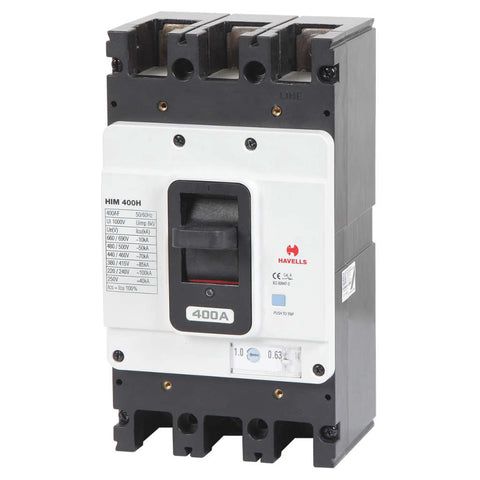

*Actual product image may vary from that shown on the picture

Product Specification

Brand	Havells
Product Type	MCCB
Product Code \| Current Rating	IHDA9MBF0300 \| 300 A IHDA9MBF0350 \| 350 A IHDA9MBF0400 \| 400 A
Series	HIM Series
No Of Poles	Four Pole
Frame	HIM 400
Rated Ultimate Short-Circuit Breaking Capacity Ics=100% Icu at 415 Vac(kA rms)	85 kA
Rated Ultimate Short-Circuit Breaking Capacity Icu at 250 V(2P)-DC (kA)	40 kA
Ambient Temperature	40 °C
Breaking Capacity	Ics=Icu=100% (16 kA / 20 kA)
Operating Altitude	2000 m
Rated Frequency	(50/60) Hz
Rated Impulse Voltage	8 kV
Rated Insulation Voltage	1000 V AC
Rated Operational Voltage	690 V AC
Type Of Release	Thermomagnetic Adjustable Type
Utilisation Category	A
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	4 Pole MCCB
Manufacturer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Packer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Country of Origin	India
