SKU # 1000139346

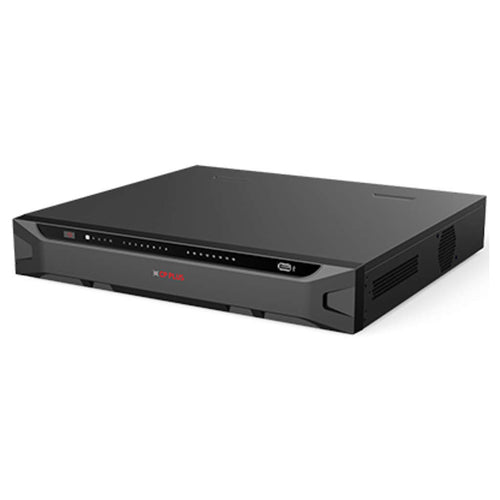

CP Plus 32 Channel Network Video Recorder Without HDD CP-UNR-4K4322-V4
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Up to 32 channel IP camera input
-
Instastream, H.265, H.264 , H.264, MJPEG Decoding
-
Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps
-
Max. 160/128/60 Mbps Incoming/ Recording/ Outgoing Bandwidth
-
Support 2 SATA HDDs up to 20TB Each, 2 USB Ports
-
HDMI / VGA simultaneous video output
-
AI by Camera: Face detection and recognition, Perimeter protection, SMD Plus, People counting, Stereo analysis and heat map
-
Support Multi-brand network cameras
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro Lite
-
Functions
-
Smart Motion Detection (SMD Plus) By Camera
-
CP Plus has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
H.265
-
H.265 is the latest innovation among the standard video compression designs
-
This technology is beneficial for minimizing storage costs and provides big savings on resolution and the rate of frame in the video through the use of Intelligent Region Perception to detect motion in each frame
-
Face Detection By Camera
-
With the help of the deep learning algorithm that is used in this technology, people can easily be detected, tracked, recorded, and captured
-
It takes only a second to detect one human face
-
Face detection is useful in cameras to help with auto-focus
-
This technology is mainly used to identify the presence of a human face
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP Plus IP Cameras, DVRs/ NVRs and Video Door Phones, the CP Plus gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro Lite
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively supports CP Plus devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
NVR |
|
Product Model |
CP-UNR-4K4322-V4 |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded Linux |
|
IP Camera Input |
32 channel |
|
User Interface |
Web, Local GUI |
|
AI By Camera |
Face detection, Face recognition, Perimeter protection, SMD Plus, People counting, Stereo analysis, Heat map |
|
AI By NVR |
SMD Plus |
|
Perimeter Performance Of AI By Camera |
6 channels |
|
Video Output |
1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
Face Attributes |
Gender, age group, glasses, expressions, face mask, beard |
|
Abnormality Alarm |
Camera disconnection, Storage error, Disk full, IP conflict, MAC conflict, Login locked, Cybersecurity exception |
|
SMD Plus By Camera |
6 channels |
|
SMD Plus By NVR |
2 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
|
Face Recognition AI By NVR |
6 Channels |
|
Face Detection AI By Camera |
6 channels |
|
Resolution |
12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2MP, 960p, 720p, D1, CIF, QCIF |
|
Decoding Capability |
AI disabled: 1 Channel 12 MP@30 fps, 2 Channel 8 MP@30 fps, 3 Channel 5 MP@30 fps, 4 Channel 4 MP@30 fps, 8 Channel 1080p@30 fps AI enabled: 1 Channel 12 MP@30 fps, 1 Channel 8 MP@30 fps, 2 Channel 5 MP@30 fps, 3 Channel 4 MP@30 fps, 7 Channel 1080p@30 fps |
|
Video Compression |
Instastream; H.265, H.264+, H.264 |
|
Network Bandwidth |
AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
|
Alarm Input |
4 Channels |
|
Alarm Output |
2 channels (1-channel 12 V 1 A output) |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Disk Group |
Support |
|
Video Display Split |
AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16 |
|
Audio Input |
1 Channel RCA |
|
Audio Output |
1 Channel RCA |
|
Audio Compression |
G.711a, G.711u, PCM, G726, AAC |
|
Record Mode |
General, Motion detection, Intelligent, Alarm |
|
Hard Disk |
2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environ- ment temperature |
|
General Alarm |
Motion detection, Privacy masking, Video loss, Scene changing, PIR alarm, IPC external alarm |
|
Intelligent Alarm |
Face detection, Face recognition, Perimeter protection, SMD Plus, People counting, Stereo analysis, Heat map |
|
Alarm Linkage |
Record, Snapshot, IPC external alarm output, Audio, Buzzer, Log, Preset, Email |
|
Browser |
Chrome, IE, Safari, Edge, Firefox |
|
Multi-Channel Playback |
Up to 16 Channels |
|
Playback |
Instant playback, General playback, Event playback, Tag playback, Smart playback |
|
Backup Mode |
USB device and Network |
|
Interface Ports |
2 (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA |
|
Ethernet |
1 (10/100/1000 Mbps Ethernet port, RJ-45) |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Registration, ONVIF 22.12(Profile T, Profile S, Profile G), CGI, SDK |
|
Power Supply |
12 VDC, 4 A |
|
Power Consumption |
Total output of NVR is <10 W(without HDD) |
|
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
|
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
|
Operating Humidity |
10%–93% (RH), non-condensing |
|
Dimension |
375 × 282.9 × 53 mm |
|
Weight |
1.49 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
37.5 x 28.2 x 5.3 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.5 kg |
|
Generic Name |
32 Channel NVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
