SKU # 1000139348

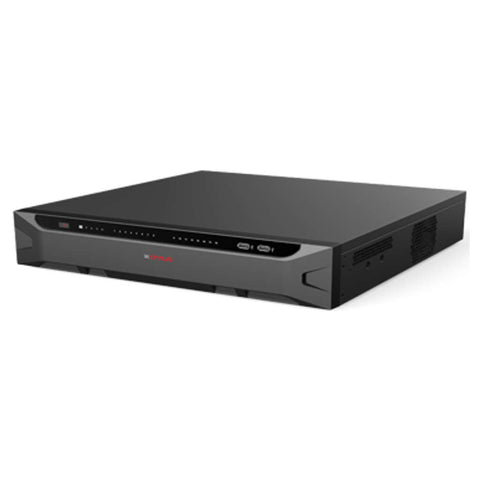

CP Plus 32 Channel Network Video Recorder Without HDD CP-UNR-4K4324-FI
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Up to 32 channel IP camera input
-
AI disabled: 2-channel 16 MP@30 fps, AI enabled: 1-channel 16 MP@30 fps
-
H.265, H.264, MJPEG
-
Up to 16Mp Video Resolution
-
AI disabled: 256 Mbps incoming, AI enabled: 180 Mbps incoming
-
Support 4 SATA ports, up to 16TB, 3 USB (1 front USB 2.0 port, 2 rear USB3.0 ports)
-
1 HDMI, 1 VGA simultaneous video output
-
Support ONVIF
-
Support SMD Plus
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro Lite
-
Functions
-
Face Recognition
-
This technology can be used to extract faces from a range of cameras and is capable of processing large quantities of faces in real-time or post-event and can provide alerts to help with access and authentication, border security, and crowd control
-
Smart Motion Detection (SMD Plus)
-
CP Plus has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
Instastream
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP Plus help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
Face Detection
-
With the help of the deep learning algorithm that is used in this technology, people can easily be detected, tracked, recorded, and captured
-
It takes only a second to detect one human face
-
Face detection is useful in cameras to help with auto-focus
-
This technology is mainly used to identify the presence of a human face
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro Lite
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively supports CP Plus devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
NVR |
|
Product Model |
CP-UNR-4K4324-FI |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded Linux |
|
IP Camera Input |
32 channels |
|
User Interface |
Web, Local GUI |
|
Video Output |
1-channel VGA, 1-channel HDMI video output. HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
|
Video Compression |
H.265, H.264, MJPEG |
|
Encode Strategy |
Instastream |
|
Decoding Capability |
AI disabled: 2-channel 16 MP@30 fps, 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 6-channel 5 MP@30 fps, 8-channel 4 MP@30 fps, 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps, 2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 5 MP@30 fps, 6-channel 4 MP@30 fps, 12-channel 1080p@30 fps |
|
Video Resolution |
16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2MP, 960p, 1MP, D1, CIF |
|
Video Display Split |
Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16 |
|
AI By NVR |
Face detection, face recognition, perimeter protection, SMD Plus |
|
AI By Camera |
Face detection, face recognition, perimeter protection, SMD Plus, ANPR, people counting, ste- reo analysis, heat map |
|
Perimeter Performance AI By NVR |
2 channels, 10 IVS rules for each channel |
|
Perimeter Performance Of AI By Camera |
8 channels |
|
Face Attributes |
Gender, age group, glasses, expressions, face mask, beard |
|
Face Detection AI By NVR |
1 channels (up to 12 face images/s each channel) |
|
Face Detection AI By Camera |
8 channels |
|
Face Database Capacity |
Up to 10 face databases with 200,00 images, with a total capacity of 2.5 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image |
|
Face Recognition AI By NVR |
8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
|
Face Recognition AI By Camera |
8 channels |
|
License Plate Database Capacity |
1. Create up to 20,000 plate numbers 2. Blocklist and allow list |
|
ANPR By Camera (Number Of Channels) |
4 channels |
|
SMD Plus By NVR |
4 channels |
|
SMD Plus By Camera |
8 channels |
|
Network Bandwidth |
AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Network Mode |
Multi-address mode, load balance, fault tolerance and other network port binding modes |
|
Interface Ports |
3(1 front USB 2.0 port, 2 rear USB 3.0 ports), 1 HDMI, 1 VGA, 1 RS232, 1 eSATA Port, 1 RS485 |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, InstaOn cloud, Auto Registration, ONVIF 21.12(Profile T, Profile S, Profile G) |
|
Ethernet |
2 (10/100/1000 Mbps Ethernet port, RJ-45) |
|
Browser |
Chrome, IE9 and later, Firefox, Edge |
|
Abnormality Alarm |
Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, cybersecurity exception |
|
Intelligent Alarm |
Face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map |
|
General Alarm |
Motion detection, privacy masking, local alarm |
|
Alarm Linkage |
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email |
|
Alarm Input |
16 channel |
|
Alarm Output |
4 channels |
|
Audio Input |
1-channel RCA |
|
Audio Output |
1-channel RCA |
|
Audio Compression |
G.711a, G.711u, PCM, G726, AAC |
|
Hard Disk |
4 SATA ports, up to 16TB each. The maximum HDD capacity varies with environment temperature |
|
Disk Group |
Support |
|
Multi-Channel Playback |
Up to 16 channels |
|
Record Mode |
General, motion detection, intelligent, alarm, POS |
|
Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
|
Backup Method |
USB device and network |
|
Power Supply |
100–240 VAC, 50-60Hz |
|
Power Consumption |
<10 W (without HDD) |
|
Operating Temperature |
-10 °C to +55 °C (14 °F to +131 °F) |
|
Operating Humidity |
10%–93% (RH) |
|
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
|
Dimension |
440 × 415.1 × 70 mm |
|
Weight |
4.25 kg (Without HDD) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
44 x 41.5 x 7 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
4.3 kg |
|
Generic Name |
32 Channel NVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
