SKU # 1000076724

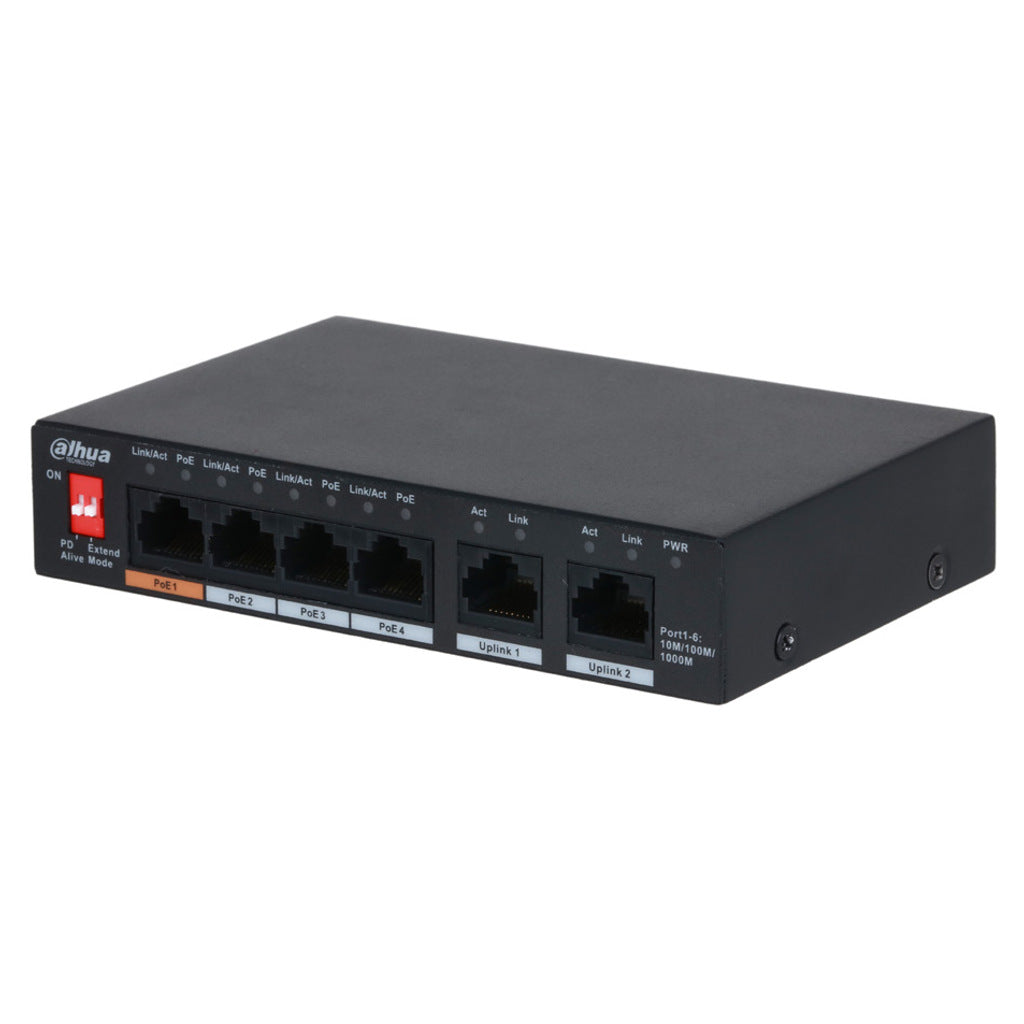

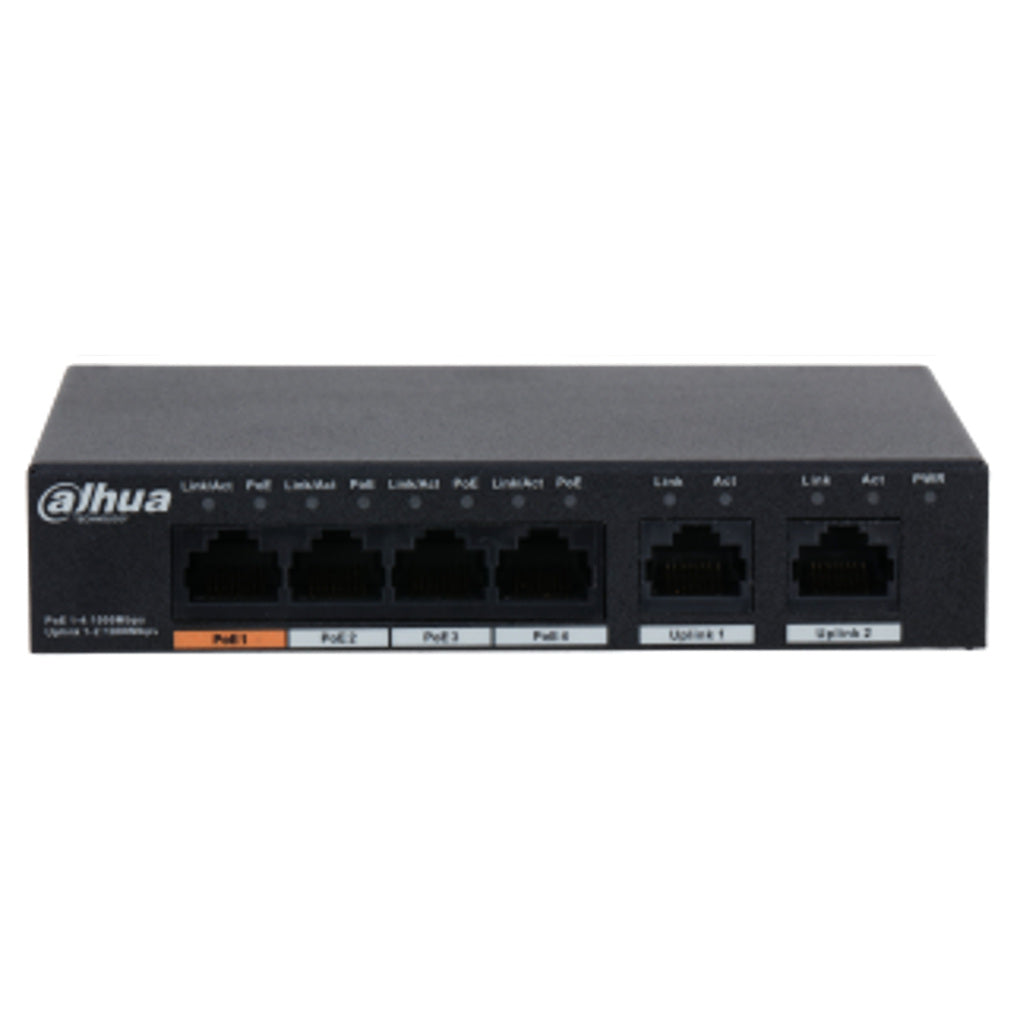

Dahua 6-Port Unmanaged Desktop Switch With 4-Port Poe DH-PFS3006-4GT-60
![](http://www.bestomart.com/cdn/shop/t/34/assets/panid.png?v=79406228544121282611724821519)
PAN INDIA DELIVERY
![](http://www.bestomart.com/cdn/shop/t/34/assets/pre_qc.png?v=79212665365913751591724821538)
100% Genuine Products
![](http://www.bestomart.com/cdn/shop/t/34/assets/pay_sec.png?v=25498095452997473051724821521)
100% Secured Payments
Product Description
-
Intelligent PoE
-
Hi-PoE 60W (orange port)
-
Long distance PoE
-
PoE watchdog
-
All-giga ports
-
Wide working temperature
-
Functions
-
Intelligent PoE
-
Hi-PoE 60W (Orange Port)
-
PoE Watchdog
-
Long Distance PoE
-
8-pin Assignment PoE Power Supply
-
Scene
-
The device is applicable for use in different scenarios, including home, office, server farm, and small mall
Product Specification
Brand |
Dahua |
Product Type |
PoE Switch |
Product Model |
DH-PFS3006-4GT-60 |
Hardware Feature | |
Ethernet Port |
Port1-4: 4 × RJ-45 10/100/1000M (PoE) Port5-6: 2 × RJ-45 10/100/1000M (uplink) |
PoE Power Consumption |
Port1≤ 60 W (Hi-PoE) Port2-4 ≤30 W Total≤60 W |
Power Consumption |
Idling: 0.96 W Full load: 60 W |
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
PoE | |
PoE Protocol |
IEEE802.3af/ IEEE802.3at/ Hi-PoE |
Power Supply Pin |
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
Long Distance |
250 m long distance PoE transmission |
PoE Power Management |
Yes |
PoE Watchdog |
Yes |
Performance | |
Switching Capacity |
14 Gbps |
Packet Forwarding Rate |
8.928 Mbps |
Packet Buffer Memory |
1 Mbit |
Mac Address Table |
2 K |
Flow Control |
Enable by default |
Working Temperature |
–10 °C to 55 °C (+14°F to +131°F) |
Application Humidity |
5%–95% (RH) |
General | |
Power Input |
48 V - 57 V DC |
Lighting Protection |
Common mode: 4 kV Differential mode: 2 kV |
Esd Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
Wall-Mount Installation |
Yes |
Anti-Theft Lock Hole |
Yes |
Weight |
0.30 kg (0.64 lb) |
Dimension |
130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
POE Switches |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
