SKU # 1000076723

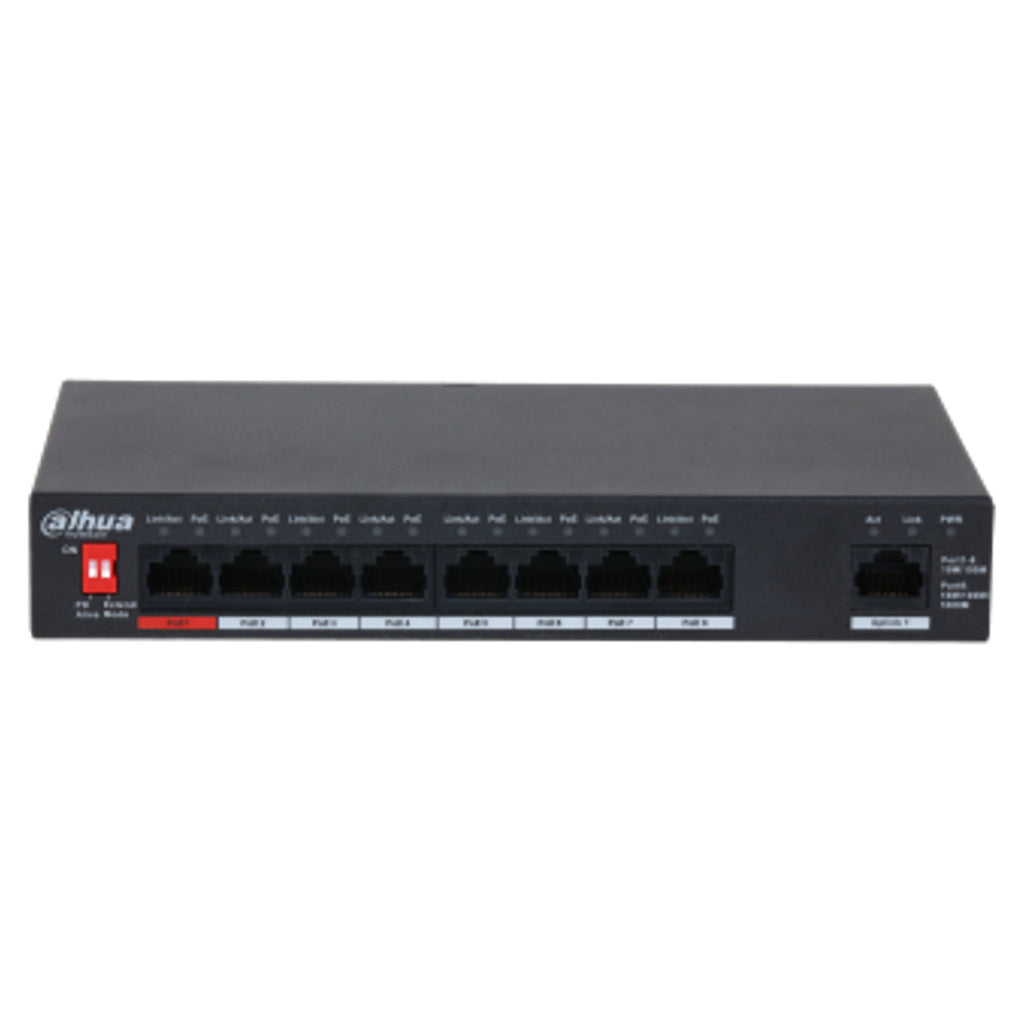

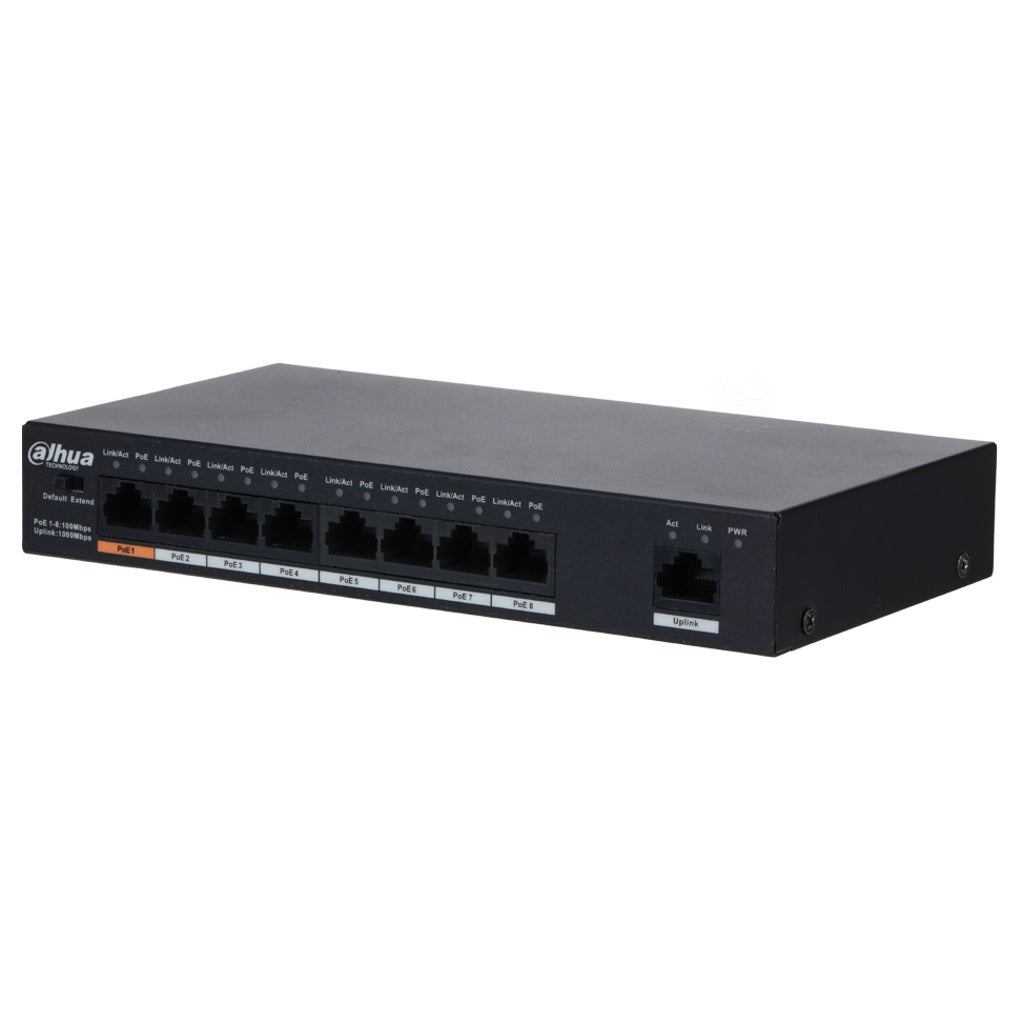

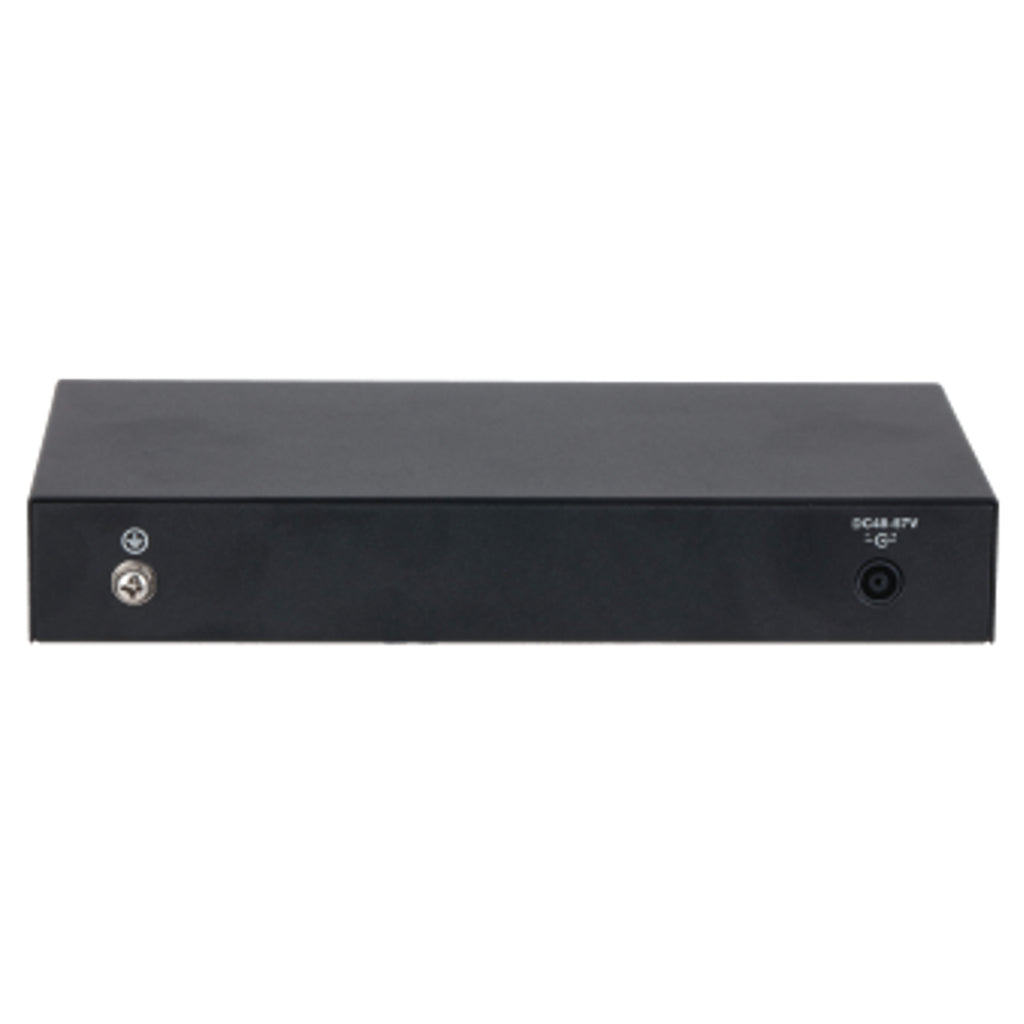

Dahua 9-Port Unmanaged Desktop Switch With 8-Port PoE DH-PFS3009-8ET1GT-96
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Layer 2 commercial switch
-
Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards
-
MAC auto study and aging, MAC table size is 2K
-
MDI/MDIX self-adaption
-
Adopts metal enclosure
-
Port 1 supports Hi-PoE 60W power supply
-
Wall-mount installation
-
Anti-theft lock hole
-
Long distance PoE
-
Functions
-
Intelligent PoE
-
Eight-PIN Assignment PoE Power Supply
-
Hi-PoE 60W (Orange Port)
-
Long Distance PoE
-
Easy Installation
-
Wide Working Temperature
-
Application
-
The 9-Port Unmanaged Desktop Switch with 8-Port PoE is applicable to small-scale monitoring network, such as office desktop, school, hotel, supermarket and hospital
Product Specification
Brand |
Dahua |
Product Type |
PoE Switch |
Product Model |
DH-PFS3009-8ET1GT-96 |
Hardware | |
Ethernet Port |
Port 1-8:8 × RJ45 10/100M(PoE) Port 9:1 × RJ45 10/100/1000M(Uplink) |
PoE Budget |
Port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W |
Power Consumption (static) |
2.7W |
Standards Compliance |
IEEE802.3, IEEE802.3u, IEEE802.3x |
PoE Standard |
IEEE802.3af, IEEE802.3at, Hi-PoE |
PoE Pin Assignment |
PoE/Hi-PoE:1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
Long Distance |
250 m, 10 Mbps |
PoE Management |
Support |
Switching Capacity |
3.6 Gbps |
Packet Forwarding Rate |
2.678 Mpps |
Packet Buffer Memory |
1 Mbit |
Mac Table Size |
2K |
Flow Control |
Enable by default |
Operating Humidity |
5%–95% |
Power Supply |
External power adpater: 53V DV |
Thunderproof |
Common mode: 4kV Differential mode: 2kV |
Esd |
Air discharge: 8kV Contact discharge: 6kV |
Mounting |
Support desktop and wall mounting |
Anti-Theft Lock Hole |
Support |
Operating Temperature |
-10°C to 55°C (14°F to 131°F) |
Weight |
Net weight: 0.47 kg (1.04 lb) Box weight (with accessory): 1.28 kg (2.82 lb) Protective box weight (with accessory): 10.98 kg (24.21 lb) |
Dimensions (w × D × H) |
190 mm × 100 mm × 30 mm (7.48” × 3.94” × 0.9”) |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
POE Switches |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
