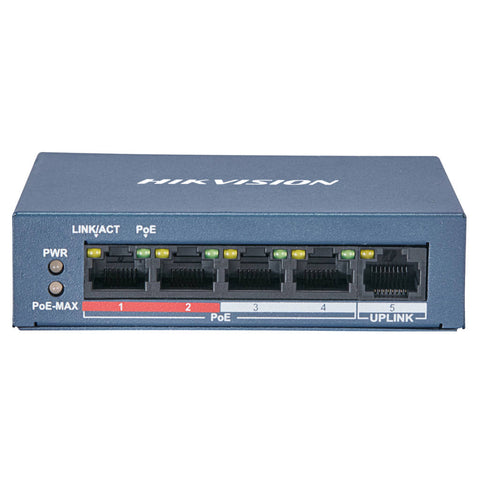

Hikvision Value Series Long-Range Unmanaged POE Switch 4-Port 100 Mbps DS-3E0105P-E/M

Hikvision Value Series Long-Range Unmanaged POE Switch 4-Port 100 Mbps DS-3E0105P-E/M


₹ 1,890.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Intelligent POE Management

  • When the power supply exceeds the limit, POE ports intelligently

  • manage the power supply, which extends the switch lifetime.

  • Up to 300 m Long Range POE Transmission.

  • The distance between IPCs and switch can reach maximum 300 meters.

  • 4/8-Core Adaptive Power Supply with Less Power Loss.

  • 8-core power supply reduces the power loss on cables.

  • 6KV Surge Protection to Improve Reliability in Harsh Environment

  • The built-in surge protection device protects the switch from the

  • sudden lightning surge in harsh environment.

  • Design for Video Transmission.

  • VIP port ensures important data transmission when network congestion occurs

Product Specification

Brand

Hikvision

Product Type

POE Switch

Product Code

DS-3E0105P-E/M

Series

Value

Port Number

4 × 100 Mbps POE ports, 1 × 100 Mbps Ethernet port

Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Mode

Store-and-forward switching

Working Mode

Standard mode (default); Extend mode

High Priority Ports

Ports 1 to 2

Ports For Long-Distance Transmission

Ports 1 to 4

Mac Address Table

1 K

Switching Capacity

1 Gbps

Packet Forwarding Rate

0.744 Mpps

Internal Cache

448 Kbits

POE Standard

IEEE 802.3af, IEEE 802.3at

POE Power Pin

Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply

POE Port

Ports 1 to 4

Max. Port Power

30 W

POE Power Budget

35 W

Max. Power Consumption

38 W

Shell

Metal material, fan-free design

Net Weight

0.2 kg (0.4 lb)

Operating Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Storage Humidity

5% to 95% (no condensation)

Power Supply

48 VDC, 0.8 A

Power Consumption In Idle

3 W

Emc

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN

61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Dimension (l × H × D)

105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)

Gross Weight

0.48 kg (1.06 lb)

Warranty

As Per Manufacturer Terms And Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

POE Switches

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country of Origin

India
