SKU # 1000076728

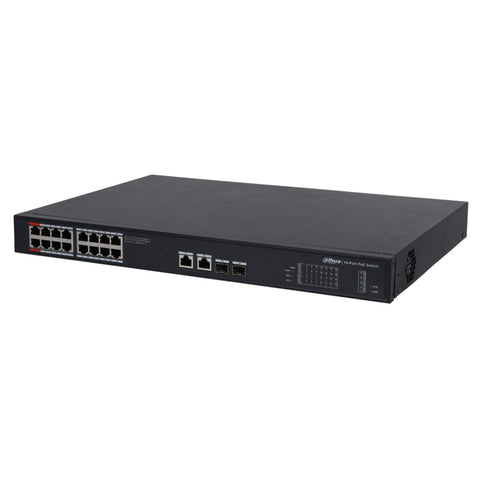

Dahua All-Giga Poe Switch DH-PFS3220-16GT-190

Dahua All-Giga Poe Switch DH-PFS3220-16GT-190

Visit the Dahua Store

₹ 17,240.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 7-10 Business days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Intelligent PoE

  • Red Port Supports BT 90W

  • All-giga Ports

  • Smooth Transmission

  • Wide Working Temperature: –10°C to 55°C (14°F to 131°F)

  • Plug and Play

  • Scene

  • Applicable to small and micro-scale monitoring networks such as office desktops, schools, hotels, supermarkets, hospitals

Product Specification

Brand

Dahua

Product Type

PoE Switch

Product Model

DH-PFS3220-16GT-190

CErtification

Layer

Layer 2

Managed

No

Switching Capacity

52 Gbps

Packet Forwarding Rate

29.76 Mpps

Packet Buffer Memory

4 Mbit

Mac Table Size

8K

Standards Compliance

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

Hardware Feature

Standard Power Supply

Yes

PoE

Yes

Ethernet Port

16

Optical Port

2

Ethernet Port Rate

1 Gbps

Optical Port Rate

1 Gbps

Number Of Bussiness Card Slots

Port 1–16: 16 × RJ45 10/100/1000 M (PoE) Port 17–18: 2 × RJ45 10/100/1000 M (uplink) Port 19–20: 2 × SFP 1000 M (uplink)

Power Supply

100V AC–240V AC

Operating Temperature

10°C to 55°C (14°F to 131°F)

Operating Humidity

10%–90%

Storage Humidity

5%–95%

Power Consumption

Idling: 7W Full load: 190W

PoE

PoE Standard

IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt

PoE Budget

Port 1–2≤90W, Port 3–16≤30W, total≤190W

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

General

Esd

Air discharge: 8kV Contact discharge: 6kV

Thunderproof

Common mode: 4kV Differential mode: 2kV

Dimensions

440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

POE Switches

Manufacturer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China.

Packer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China.

Importer Details

Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100

Country of Origin

China
