SKU # 1000082522

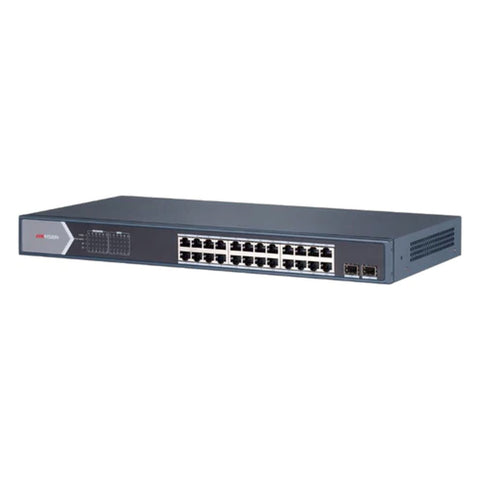

Hikvision Unmanaged PoE Switch 24-Port Gigabit DS-3E0526P-E/M
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
DS-3E0526P-E/M switch is a layer 2 PoE network switch,providing 24 × Gigabit PoE ports and 2 × Gigabit SFP fiberoptical ports
-
On top of high-performance access, the switchprovides advanced PoE power technology to guarantee thestable network upload of the adaptive data
-
Feature
-
24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports
-
IEEE 802.3at/af standard
-
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
-
6 KV surge protection for PoE ports
-
PoE power management
-
Gigabit network access
-
Wire-speed forwarding
-
Store-and-forward switching
-
Solid high-strength metal shell
Product Specification
Brand |
Hikvision |
Product Type |
POE Switch |
Product Model |
DS-3E0526P-E/M |
Network Parameters |
|
Port Number |
24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports |
Port Type |
RJ45 port, full duplex, MDI/MDI-X adaptive |
Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
Forwarding Mode |
Store-and-forward switching |
Mac Address Table |
8 K |
Switching Capacity |
52 Gbps |
Packet Forwarding Rate |
38.688 Mpps |
Internal Cache |
4.1 Mbits |
Poe Power Supply |
|
Poe Standard |
IEEE 802.3af, IEEE 802.3at |
Poe Power Pin |
Ethernet cable 1/2/3/6 provide power supply |
Poe Port |
Ports 1 to 24 |
Max. Port Power |
30 W |
Poe Power Budget |
225 W |
Max. Power Consumption |
250 W |
General |
|
Shell |
Metal material with a fan equipped. |
Power Supply |
100 to 240 VAC, 50/60 Hz, 4 A (Max) |
Power Consumption In Idle |
25 W |
Operating Temperature Storage Temperature |
-10 °C to 55 °C (14 °F to 131 °F) -40 °C to 85 °C (-40 °F to 185 °F) |
Operating Humidity |
5% to 95% (no condensation) |
Storage Humidity |
5% to 95% (no condensation) |
Dimension (l × H × D) |
440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”) |
Net Weight |
2.920 kg (6.44 lb) |
Gross Weight |
4.120 kg (9.08 lb) |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
POE Switches |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
