LAST SOLD AT ₹ 12,680.00
SKU # 1000083910

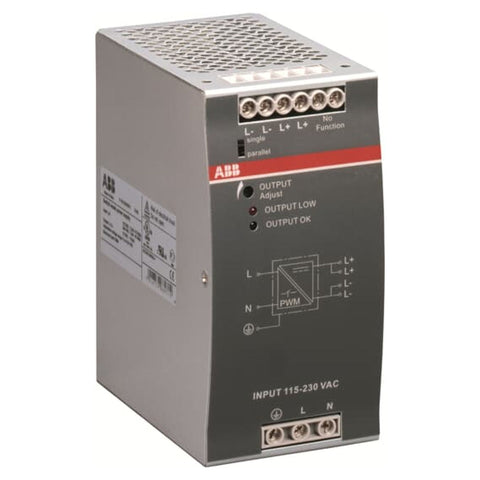

ABB CP-E 12/10.0 Power Supply 1SVR427035R1000
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
CP-E 12/10.0 Power supply In:115/230VAC Out: 12VDC/10A
-
The CP-E 12/10.0 is a power supply from the CP-E range
-
The primary switch mode power supply Offers a wide range input Of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select)
-
The rated output power is 120 W, rated output current is 10 A at an output voltage Of 12 V DC
-
The output voltage is adjustable within a range Of 11.4 to 14.5 V DC
-
The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel
-
A redundancy unit is available as accessory
Product Specification
Brand |
ABB |
Product Type |
Power Supply |
Product Code |
1SVR427035R1000 |
Model |
CP-E 12/10.0 |
Technical |
|
Function |
Switch mode power supply |
Number Of Phases |
1 |
Rated Input Voltage (U In ) |
115 / 230 V AC |
Nput Voltage (U In) |
90 ... 132 V AC 180 ... 264 V AC 210 ... 375 V DC |
Rated Frequency Limits |
47 ... 63 Hz |
Characteristic Of Output |
U/I characteristic curve |
Rated Output Power |
120 W |
Output Power |
120 W |
Rated Output Voltage |
12 V DC |
Output Voltage (U Out) |
12 V DC |
Rated Output Current |
10 A |
Output Current |
10 A |
Rated Insulation Voltage (U I ) |
Input Circuit / Output Circuit 3 V Input Circuit / PE 2 V |
Degree Of Protection |
Housing IP20 Terminals IP20 |
Pollution Degree |
2 |
Connecting Capacity Nput Circuit |
Flexible with Ferrule 0.2 ... 4 mm2 Rigid 0.2 ... 6 mm2 |
Connecting Capacity Output Circuit |
Flexible with Ferrule 0.2 ... 4 mm2 Rigid 0.2 ... 6 mm2 |
Tightening Torque |
Input Circuit 1 N·m Output Circuit 0.62 N·m |
Wire Stripping Length |
Input Circuit 8 mm Output Circuit 8 mm |
Minimum Mounting Distance |
Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm |
Mounting Position |
Position 1 |
Standards |
ANSI/ISA-12.12 CAN/CSA C22.2 No.107.1 CAN/CSA C22.2 No.213 CAN/CSA C22.2 No.60950 IEC/EN 63000 IEC 60950-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 UL 60950 |
Ambient Air Temperature |
Operation -35 ... +70 °C Storage -40 ... +85 °C |
Technical UL/CSA |
|
Connecting Capacity Input Circuit UL/CSA |
Rigid 24-10 AWG |
Connecting Capacity Output Circuit UL/CSA |
Rigid 24-10 AWG |
Tightening Torque UL/CSA |
Input Circuit 9 in·lb Output Circuit 5.5 in·lb |
Electromagnetic Compatibility |
|
Electrostatic Discharge (ESD Immunity) Acc. To Ec 61000-4-2 |
Level 4 Air Discharge 15 kV Level 4 Contact Discharge 8 kV |
Radiated Electromagnetic Field Mmunity Acc. To Iec 61000-4-3 |
Level 3 10 V/m |
Electrical Fast Transient (Burst Immunity) Acc. To Ec 61000-4-4 |
Level 4 Power Supply Port Signal 4 kV |
Surge Immunity Acc. To Ec 61000-4-5 |
Level 3 Line-to-Line 2 kV Level 4 Line-to-Ground 4 kV |
Conducted Disturbances Mmunity Acc. To Iec 61000-4-6 |
Level 3 10 V |
Electromagnetic Compatibility (EMC) |
Immunity - Class B Emission - Class B |
Dimensions |
|
Product Net Width |
63.2mm |
Product Net Height |
123.6mm |
Product Net Depth / Length |
123.6mm |
Product Net Weight |
0.888 kg |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Power Supplies |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
