LAST SOLD AT ₹ 6,710.00
SKU # 1000083908

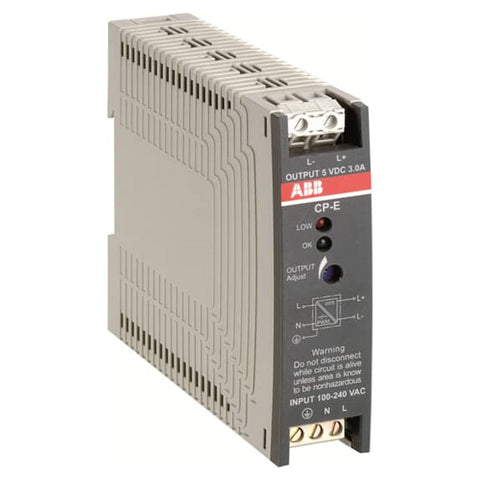

ABB CP-E 5/3.0 Power Supply 1SVR427033R3000
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
CP-E 5/3.0 Power supply In:100-240VAC Out: 5VDC/3.0A
-
The CP-E 5/3.0 is a power supply from the CP-E range
-
The primary switch mode power supply Offers a wide range input Of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC
-
The rated output power is 15 W, rated output current is 3.0 A at an output voltage Of 5 V DC
-
The output voltage is adjustable within a range Of 4.5 to 5.75 V DC
-
The output characteristic is hiccup-mode
-
The power supply allows parallel operation to enable redundancy
-
A redundancy unit is available as accessory
Product Specification
|
Brand |
ABB |
|
Product Type |
Power Supply |
|
Product Code |
1SVR427033R3000 |
|
Model |
CP-E 5/3.0 |
|
Technical |
|
|
Function |
Switch mode power supply |
|
Number Of Phases |
1 |
|
Rated Input Voltage (U In ) |
100 ... 240 V AC |
|
Input Voltage (U In) |
90 ... 264 V AC 120 ... 375 V DC |
|
Rated Frequency Limits |
47 ... 63 Hz |
|
Characteristic Of Output |
Hiccup-mode |
|
Rated Output Power |
15 W |
|
Output Power |
15 W |
|
Rated Output Voltage |
5 V DC |
|
Output Voltage (U Out) |
5 V DC |
|
Rated Output Current |
3 A |
|
Output Current |
3 A |
|
Rated Insulation Voltage (U I ) |
Input Circuit / Output Circuit 3 V Input Circuit / PE 2 V |
|
Degree Of Protection |
Housing IP20 Terminals IP20 |
|
Connecting Capacity Input Circuit |
Flexible with Ferrule 0.2 ... 2.5 mm2 Rigid 0.2 ... 2.5 mm2 |
|
Connecting Capacity Output Circuit |
Flexible with Ferrule 0.2 .... 2.5 mm2 Rigid 0.2 ... 2.5 mm2 |
|
Tightening Torque |
Input Circuit 0.6 N·m Output Circuit 0.6 N·m |
|
Wire Stripping Length |
Input Circuit 6 mm Output Circuit 6 mm |
|
Minimum Mounting Distance |
Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm |
|
Mounting Position |
Position 1 |
|
Mounting On Din Rail |
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
|
Standards |
ANSI/ISA-12.12 CAN/CSA C22.2 No.107.1 CAN/CSA C22.2 No.213 CAN/CSA C22.2 No.223 CAN/CSA C22.2 No.60950 IEC/EN 63000 IEC 60950-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 1310 UL 508 UL 60950 |
|
Environmental |
|
|
Ambient Air Temperature |
Operation -20 ... +70 °C Storage -25 ... +85 °C |
|
Technical UL/CSA |
|
|
Connecting Capacity Input Circuit UL/CSA |
Rigid 24-14 AWG |
|
Connecting Capacity Output Circuit UL/CSA |
Rigid 24-14 AWG |
|
Tightening Torque UL/CSA |
Input Circuit 5 in·lb Output Circuit 5 in·lb |
|
Electromagnetic Compatibility |
|
|
Electrostatic Discharge (ESD Immunity) Acc. To Iec 61000-4-2 |
Level 4 Air Discharge 15 kV Level 4 Contact Discharge 8 kV |
|
Radiated Electromagnetic Field Immunity Acc. To Iec 61000-4-3 |
Level 3 10 V/m |
|
Electrical Fast Transient (Burst Immunity) Acc. To Iec 61000-4-4 |
Level 4 Power Supply Port Signal 4 kV |
|
Surge Immunity Acc. To Iec 61000-4-5 |
Level 3 Line-to-Line 2 kV Level 4 Line-to-Ground 4 kV |
|
Conducted Disturbances Immunity Acc. To Iec 61000-4-6 |
Level 3 10 V |
|
Electromagnetic Compatibility (EMC) |
Immunity - Class B Emission - Class B |
|
Dimensions |
|
|
Product Net Width |
22.5mm |
|
Product Net Height |
90mm |
|
Product Net Depth / Length |
114mm |
|
Product Net Weight |
0.144 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Power Supplies |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
