SKU # 1000102836

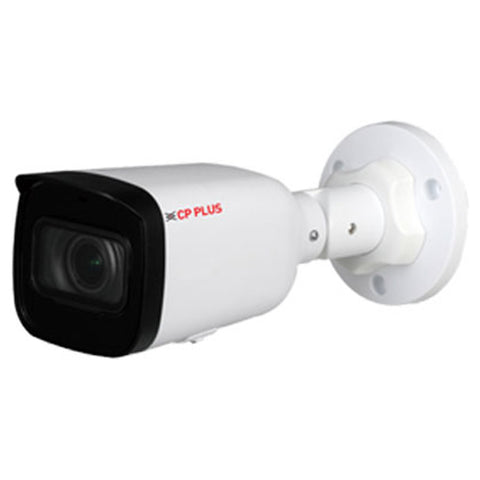

CP Plus Full HD IR Bullet Camera 2MP 50Mtr CP-UNC-TA21ZPL5-M
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/2.8” 2MP PS CMOS Image Sensor(0.9071 cm)
-
25/30fps@1080P(1920×1080)
-
H.265+/ H.264+ dual-stream encoding
-
DWDR, Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
-
2.8~12mm Motorized lens
-
IR Range of 50 Mtrs, IP67, Micro SD Card, PoE
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | Bullet Camera |
| Product Model | CP-UNC-TA21ZPL5-M |
| Image Sensor | 1/2.8” 2MP PS CMOS Image Sensor(0.9071 cm) |
| Minimum Illumination | 0.005 Lux@F1.5 |
| Effective Pixels | 1920(H)x1080(V) |
| Bodytype | Dome |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional custom |
| Lens | 2.8mm~12mm Motorized Lens |
| Gain Control(AGC) | Auto/Manual |
| Video Compression | H.265+/H.265/H.264+/H.264H/H.264B/ MJPEG(only supported by Sub stream) |
| Angle Of View | Pan: 101°–33.5° Tilt: 52.5°–19° Diagonal: 125°–38.5° |
| S/N Ratio | >56dB |
| Back Light Computer | BLC/ HLC/ DWDR |
| Frame Rate | Main Stream: 1920 × 1080(1 fps–25/30 fps) Sub stream: 704 × 576(1 fps–25 fps) 704 × 480(1 fps–30 fps) |
| Resolution | 1080P(1920 × 1080); 1.3MP(1280 × 960); 720P(1280 × 720); D1(704 × 576/704 × 480); VGA(640× 480); CIF(352 × 288/352 × 240) |
| Motion Detection | OFF/ON(4 areas, rectangular) |
| Privacy Mask | 4 Area |
| ICR | Auto(ICR)/Color/B/W |
| ROI | Yes(4 areas) |
| Bit Rate | H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6400 Kbps |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; ONVIF(Profile S/Profile T); CGI; InstaOn; Genetec; milestone |
| Ethernet | RJ-45(10/100Base-T) |
| User Account | 20 Users |
| Smart Phone | iPhone, iPad, Android Phone |
| IR Range | IR Range of 50 Mtr., Smart IR |
| Micro SD | FTP; Micro SD card(support max. 256 GB) |
| Operating Temperature | -30°C to +60°C(-22°F to +140°F)/less than ≤ 95% RH |
| Power Source | DC12V, PoE(802.3af) |
| Power Consumption | 1.4W(12V DC); 2.2W(PoE) |
| Weatherproof Standard | IP67 |
| Casing | Metal + Plastic |
| Dimension | 243.5 mm × Φ90.7 mm |
| Weight | 0.43Kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Bullet Camera |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
