SKU # 1000134794

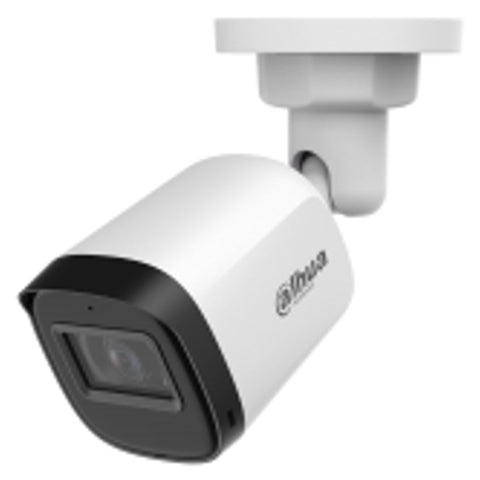

Dahua 5 MP HDCVI IR Fixed Bullet Camera DH-HAC-B1A51P-U-A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
The parameters and datasheets below can only be applied to A51-S2 series
-
In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version
-
Maximum 25 fps@5MP (16:9 video output)
-
CVI/CVBS/AHD/TVI switchable
-
3.6 mm fixed lens (2.8 mm optional)
-
Maximum IR length 30 m, Smart IR
-
Built-in mic
-
IP67, DC12V
Product Specification
| Brand | Dahua | ||||
| Product Type | Bullet Camera | ||||
| Product Model | DH-HAC-B1A51P-U-A | ||||
| Camera | |||||
| Image Sensor | 5MP CMOS | ||||
| Maximum Resolution | 2880 (H) × 1620 (V) | ||||
| Pixel | 5MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25–1/100000 s NTSC: 1/30–1/100000 s | ||||
| Minimum Illumination | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on | ||||
| S/N Ratio | More than 65 dB | ||||
| Illumination Distance | 30 m (98.43 feet) | ||||
| Illuminator On/Off Control | Auto;manual | ||||
| Lens | |||||
| Lens Type | Fixed lens / Fixed iris | ||||
| Mount Type | M12 | ||||
| Focal Length | 3.6 mm (2.8 mm Optional) | ||||
| Maximum Aperture | F2.0 | ||||
| Angle Of View | 2.8 mm: 106° × 56° × 125° (diagonal × horizontal × vertical) 3.6 mm: 92° × 48° × 109° (diagonal × horizontal × vertical) | ||||
| Focus Control | N/A | ||||
| Close Focus Distance | 2.8 mm:1.0 m (3.28 ft) 3.6 mm: 1.3 m (4.27 ft) | ||||
| DORI Distance
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 56.0 m (183.7 ft)
| 22.4 m (73.5 ft)
| 11.2 m (36.7 ft)
| 5.6 m (18.4 ft)
| |
| 3.6mm | 80 m (262.5 ft)
| 32 m (105.0 ft)
| 16 m (52.5 ft)
| 8 m (26.2 ft)
| |
| Pan / Tilt / Rotation | |||||
| Pan/Tilt/Rotation | Pan: 0° – 360° Tilt: 0° – 90° Rotation: 0° – 360° | ||||
| Video | |||||
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | ||||
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; 5M@25 fps NTSC: 5M@25 fps;4M@30 fps; 1080p@30 fps; 5M@25 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps; TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps; CVBS: 960H; | ||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Day/Night | Auto (ICR) / Manual | ||||
| OSD Menu | Multi-language | ||||
| BLC Mode | BLC / HLC / DWDR | ||||
| WDR | DWDR | ||||
| Gain Control | AGC | ||||
| Noise Reduction | 2D | ||||
| White Balance | Auto;manual | ||||
| Smart IR | Yes | ||||
| Mirror | Mirror | ||||
| Privacy Masking | Off / On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||||
| Interface | |||||
| Audio Interface | One channel built-in mic | ||||
| Eelectrical | |||||
| Power Supply | 12V DC ±30% | ||||
| Power Consumption | Maximum 3.7W (12V DC, IR on) | ||||
| Environmental | |||||
| Operating Conditions | –40°C to +60°C (–40°F to +140°F) /Less than 95% RH Start up should be done at above –40°C (–40°F) | ||||
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) /Less than 95% RH | ||||
| Ingress Protection & Vandal Resistance | IP67 | ||||
| Construction | |||||
| Casing | Plastic | ||||
| Dimensions | 69.8 × 69.8 × 149.3 mm | ||||
| Gross Weight | 0.25 kg (0.55 lb) | ||||
| Net Weight | 0.15 kg (0.33 lb) | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
Other Details
| Dimension (CM) - L x B x H | 161.3 ×69.7 ×70 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.25 kg |
| Generic Type | Bullet Camera |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
