SKU # 1000134791

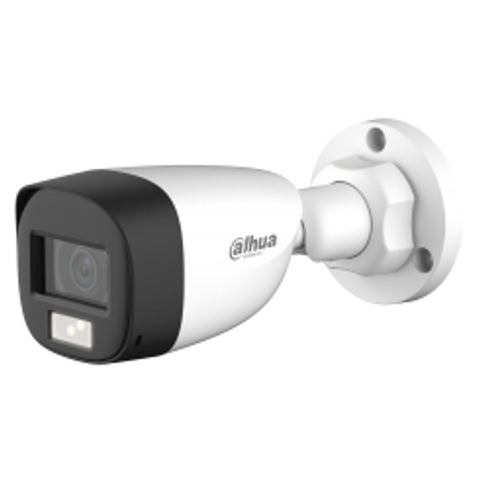

Dahua 2 MP HDCVI Smart Dual Light Fixed Focal Bullet Camera DH-HAC-HFW1209CLP-IL-A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Maximum 30 fps@1080p
-
3D NR
-
Smart Dual Light
-
20 m illumination distance
-
Super Adapt
-
Built-in MIC (-A)
-
3.6 mm fixed lens (2.8 mm optional)
-
CVI/CVBS/AHD/TVI switchable
-
IP67, 12 VDC
-
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price
-
Its low cost and high performance make it ideal for residential areas and SMB solutions
-
This series is equipped with a wide range of technologies, such as full-color and starlight, providing various solutions for different scenarios
-
Functions
-
Smart Dual Light
-
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images
-
When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution
-
Broadcast-Quality Audio
-
Audio signal transmission over coaxial cables is supported by the HDCVI camera
-
It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected
-
This becomes important for video surveillance applications that use audio
information as a type of supplementary evidence -
Super Adapt
-
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images
-
Advanced 3DNR
-
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions
-
It detects the noise, and compares the sequential frames to effectively reduce the noise
-
It also makes efficient use of bandwidth, saving on storage space
-
IP67: The camera passed a series of rigorous dust and immersion tests
-
Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes
-
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios
-
4 Signals Over 1 Coaxial Cable
-
HDCVI technology supports 4 signals (video, audio, data and power) which are simultaneously transmitted over a coaxial cable
-
Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms
-
HDCVI technology also supports PoC, which makes the camera easy and quick to install Audio input is available for select HDCVI camera models
-
Long Distance Transmission
-
HDCVI technology provides long distance transmission in real time without transmission loss
-
It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables
-
The results were obtained and verified through rigorous testing in Dahua's test laboratory
Product Specification
| Brand | Dahua | ||||
| Product Type | Bullet Camera | ||||
| Product Model | DH-HAC-HFW1209CLP-IL-A | ||||
| Camera | |||||
| Pixel | 2 MP | ||||
| Image Sensor | 2 MP CMOS | ||||
| Maximum Resolution | 1920 (H) × 1080 (V) | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s | ||||
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) | ||||
| S/N Ratio | >65 dB | ||||
| Illumination Distance | IR: 20 m (65.62 ft) Warm light: 20 m (65.62 ft) | ||||
| Illuminator On/Off Control | Auto | ||||
| Illuminator Number | 2 (IR light) 2 (Warm light) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm 3.6 mm | ||||
| Maximum Aperture | F2.0 | ||||
| Field Of View | 2.8 mm: H: 102°; V: 60°; D: 129° 3.6 mm: H: 83°; V: 48°; D: 105° | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.7 m (2.30 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 41.1 m (135.83 ft) | 16.5 m (42.13 ft)
| 8.3 m (27.23 ft)
| 4.1 m (13.45 ft)
| |
| 3.6 mm | 50.9 m (166.99 ft) | 20.3 m (66.60 ft)
| 10.2 m (33.46 ft)
| 5.1 m (16.73 ft)
| |
| Video | |||||
| Video Frame Rate | CVI:PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD:PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI:PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS:PAL: 960H NTSC: 960H | ||||
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | ||||
| Day/Night | Auto (ICR)/Color/B/W | ||||
| BLC | BLC; HLC | ||||
| WDR | DWDR | ||||
| White Balance | Auto; Area white balance | ||||
| Gain Control | Auto | ||||
| Noise Reduction | 3D NR | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 areas, rectangle) | ||||
| Illuminator | Smart IR&WL; WL Mode; IR Mode | ||||
| Certification | |||||
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B | ||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Audio Input | 1 channel | ||||
| Power | |||||
| Power Supply | 12 VDC ± 30% | ||||
| Power Consumption | Maximum 2.6W (12 VDC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Operating Humidity | <95% (RH), non-condensing | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Storage Humidity | <95% (RH), non-condensing | ||||
| Protection | IP67 | ||||
| Structure | |||||
| Casing Material | Plastic | ||||
| Installation | |||||
