SKU # 1000134782

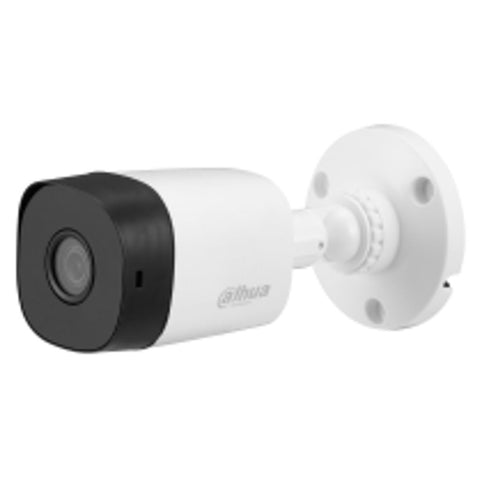

Dahua 1 MP HDCVI IR Bullet Camera DH-HAC-B1A11P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Maximum 25/230fps@720P
-
HD and SD output switchable
-
2.8mm fixed lens (3.6mm optional)
-
Maximum IR length 20 m, Smart IR
-
IP67,12 VDC
-
Experience 720P video and the simplicity of using existing cablinginfrastructure with HDCVI
-
The Cooper series 720P HDCVI camera features a compact design and offers a high quality image at a friendly price
-
It offers various fixed lens models with a multi-language OSD and HD/SD switchable output
-
Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions
-
4 Signals Over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power -
Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility -
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss -
It supports up to 800m(1080P)/1200m(720P) trans- mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable
-
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection -
HDCVI system can seamlessly upgrade the traditional ana-log system without replacing existing coaxial cabling
-
The plug and play approach enables HD video surveillance without the hassle of configuring
a network -
The camera is designed with microcrystalline LED IR illumination for best lowlight performance
-
Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination
-
Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the
distance of an object, and prevents IR LEDs from overexposing images as -
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market
-
The four formats can be switched over through OSD menu or by PFM820(UTC controller)
-
This feature makes the camera to be compatible with not
only HCVRs but also most end users’ existing HD/SD DVRs -
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes
-
The OSD menu includes configurations such as backlight mode, day/night, white balance
-
The camera supports 4 languages for OSD menu, namely, English, French, Spanish and Russian
-
The camera's outstanding reliability is unsurpassed due to its rugged design
-
The camera is protected against water and dust with IP67 ranking, making itsuitable for indoor or outdoor environments
-
With working temperature range of -40°C to +60°C (-40°F to +140°F), the camera is designed for extreme temperature environments
-
Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions
-
Its 4KV lightning rating provides protection against the camera and its structure from the
effects of lightning
Product Specification
| Brand | Dahua | |
| Product Type | Bullet Camera | |
| Product Model | DH-HAC-B1A11P | |
| Camera | ||
| Image Sensor | 1/2.7" CMOS | |
| Effective Pixels | 1280(H)×720(V), 1MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s | |
| Minimum Illumination | 0.04Lux/F2.4, 30IRE, 0Lux IR on | |
| S/N Ratio | More than 65dB | |
| IR Distance | Up to 20m (66feet) | |
| IR On/Off Control | Auto / Manual | |
| Lens | ||
| Lens Type | Fixed lens / Fixed iris | |
| Mount Type | Board-in | |
| Focal Length | 2.8mm(3.6mm optional) | |
| Maximum Aperture | F2.4 | |
| Angle Of View | H: 93°(57.6°) V: 48°(32°) | |
| Focus Control | N/A | |
| Close Focus Distance | 800mm (31.50 Inch) | |
| DORI Distance |
| |
| Detect | 25px/m (8px/ft) | |
| Pan / Tilt / Rotation | ||
| Resolution | 720P (1280×720) | |
| Frame Rate | 25/30fps@720P | |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | |
| Day/Night | Auto (ICR) / Manual | |
| OSD Menu | Multi-language | |
| BLC Mode | BLC / DWDR | |
| WDR | DWDR | |
| Gain Control | AGC | |
| Noise Reduction | 2D | |
| White Balance | Auto / Manual | |
| Smart IR | Auto / Manual | |
| Certifications | ||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |
| Interface | ||
| Audio Interface | N/A | |
| Eelectrical | ||
| Power Supply | 12V DC ±30% | |
| Power Consumption | Maximum 2.7W (12V DC, IR on) | |
| Environmental | ||
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Start up should be done at above-40°C (-40°F) | |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH | |
| Ingress Protection & Vandal Resistance | IP67 | |
| Construction | ||
| Casing | Plastic | |
| Dimensions | 70 x 70 x 149 mm | |
| Net Weight | 0.14 kg (0.31lb) | |
| Gross Weight | 0.17 kg (0.37lb) | |
| Warranty | As Per Manufacturer Terms and Condition | |
Other Details
| Dimension (CM) - L x B x H | 70 x 70 x 149 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.17 kg |
| Generic Type | Bullet Camera |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
