Out of Stock!
SKU # 1000117018

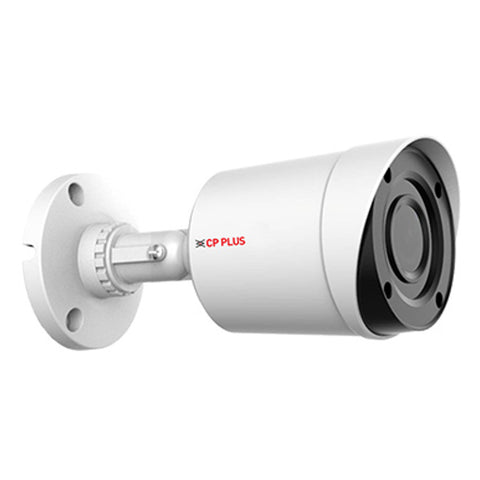

CP Plus IR Bullet Camera 2.4MP 20Mtr CP-USC-TA24L2-V5 CP-USC-TA24L2-V5
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
1/2.7" 2.4MP PS CMOS Image Sensor(0.9407Cm)
Max. output 30fps@2.4MP
DWDR, Day/Night(ICR), IP67, AWB, AGC, BLC
3.6 mm Fixed Lens(2.8mm, 6mm Optional
IR Range of 20 Mtrs
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Bullet Camera |
|
Product Model |
CP-USC-TA24L2-V5 |
|
Image Sensor |
1/2.7” 2.4MP PS CMOS Image Sensor(0.9407cm) |
|
Minimum Illumination |
0.02Lux/F1.9, 30IRE, 0Lux IR on |
|
Shutter Speed |
PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s |
|
White Balance |
Auto / Manual |
|
Gain Control (AGC) |
Auto / Manual |
|
ICR |
Auto (ICR)/Manual |
|
Lens |
3.6 mm Fixed Lens (2.8 mm, 6 mm Optional) |
|
Max Aperture |
F1.9 |
|
Auto Iris |
Fixed |
|
Lens Type |
Fixed |
|
S/N Ratio |
>65dB |
|
DORI Distance |
2.8 mm: 38.6 m(Detect) 15.4m(Observe) 7.7m(Recognize) 3.9m(Identify) 3.6 mm: 49.7m(Detect) 19.9m(Observe) 9.9m(Recognize) 5m(Identify) 6 mm: 82.8m(Detect) 31.1m(Observe) 16.6m(Recognize) 8.3m(Identify) |
|
Back Light Compensation |
BLC / HLC / DWDR |
|
Video Streaming |
CVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps AHD: 2.4MP@25/30fps; 720P@25/30fps TVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H |
|
Angle Of View |
2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical) 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) 6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical) |
|
IR Range |
IR Range of 20 Mtr. |
|
Casing |
Plastic throughout the whole casing |
|
Operating Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
|
Power Source |
12V DC ±30% |
|
Power Consumption |
Max 3.1W (12V DC, IR on) |
|
Weatherproof Standard |
IP67 |
|
Dimension |
154.3 mm × 69.8 mm × 69.8 mm |
|
Weight |
0.15Kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) - L x B x H |
154.3 mm × 69.8 mm × 69.8 mm
|
|
Unit of Measurement |
1 Piece |
|
Weight |
0.15Kg |
|
Generic Type |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country of Origin |
India |
