SKU # 1000136493

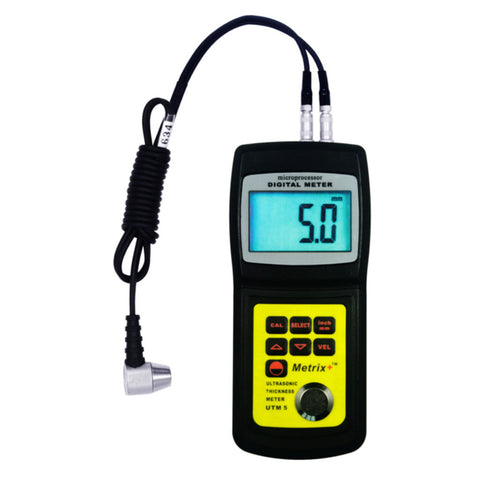

Metrix Plus Digital Ultrasonic Thickness Gauge UTM 5
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Digital Ultrasonic Thickness Meter to measure 1 ~ 200mm
-
Features
-
Preset material velocities for easy selection with custom velocity input
-
Inbuilt self-calibrator and simple calibration function
-
Automatic power off
-
Applications
-
Based on ultrasonic measuring principle, thickness of metal and other materials can be measured
-
So, it can monitor the degree of thinning, caused by corrosion, of all kinds of tubes and pressure vessels during working process, and accurately measure the thickness of all kinds of plates and processing parts
-
This gauge is applied widely in fields, such as petroleum, chemical, metallurgical, shipbuilding, aerospace industry, etc
-
Measuring Principle
-
Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall
ProductSpecification
| Brand | Metrix Plus |
| Product Type | Thickness Gauge |
| Product Model | UTM 5 |
| Display | Backlit LCD |
| Measuring Range | 1 – 200mm (45# Steel) |
| Accuracy | ±0.5%n + 0.1mm |
| Resolution | 0.1mm |
| Sound Velocity | 500 ~ 9000 m/s |
| Operating Conditions | 0 ~ 40oC, Humidity < 80% |
| Power | 1.5V x 4 AAA(UM 4) batteries |
| Standard Accessories | Ultrasonic sensor, couplant, user manual & hard carry case |
| Optional Accessories | 6MM probe for small & curved surface/pipes 8MM probe Standard probe HT Ceramic probe for high temperature surfaces PC interface (cable and software) Calibration step block (4step and 10step) |
| Size | 145 x 65 x 25 mm (Without battery) |
| Weight | 145 g |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 145 x 65 x 25 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.145 kg |
| Generic Type | Thickness Gauge |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
1000136494
ProductDescription
-
Key Features
-
Digital Ultrasonic Thickness Meter to measure 0.9 ~ 350mm
-
Features
-
Preset material velocities for easy selection with custom velocity input
-
Inbuilt self-calibrator and simple calibration function
-
Automatic power off
-
Applications
-
Based on ultrasonic measuring principle, thickness of metal and other materials can be measured So, it can monitor the degree of thinning, caused by corrosion, of all kinds of tubes and pressure vessels during working process, and accurately measure the thickness of all kinds of plates and processing parts
-
This gauge is applied widely in fields, such as petroleum, chemical, metallurgical, shipbuilding, aerospace industry, etc
-
Measuring Principle
-
Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall
ProductSpecification
| Brand | Metrix Plus |
| Product Type | Thickness Meter |
| Product Model | UTM 9 |
| Display | 4-digit backlit LCD |
| Measuring Range | 0.9 – 350mm (45# Steel) |
| Accuracy | ±0.5%n + 0.01mm |
| Resolution | 0.01mm(<100mm), 0.1mm(>100mm) |
| Sound Velocity | 500 ~ 9000 m/s |
| Operating Conditions | 0 ~ 40oC, Humidity < 80% |
| Power | 1.5V x 4 AAA(UM 4) batteries |
| Standard Accessories | Ultrasonic sensor, couplant, user manual & hard carry case |
| Optional Accessories | 6MM probe for small & curved surface/pipes 8MM probe Standard probe HT Ceramic probe for high temperature surfaces PC interface (cable and software) Calibration step block (4step and 10step) |
| Size | 145 x 65 x 25 mm (Without battery) |
| Weight | 145 g |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 145 x 65 x 25 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.145 kg |
| Generic Type | Thickness Meter |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
