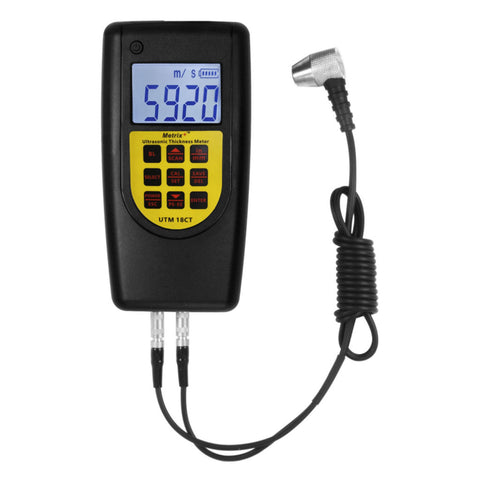

Metrix Plus Digital Ultrasonic Thickness Meter UTM 18CT
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Digital Ultrasonic Thickness Meter with multi-mode to measure 0.65 ~ 600mm(#45 Steel) in normal mode and 3 ~ 60mm in through coating (echo-echo) mode with data storage and backlit LCD
-
Features
-
Multi-mode with Pulse-Echo mode for thickness measurement, and Echo-Echo mode for eliminating paint or coating thickness, which is also useful to measure coating thickness on concrete, ceramics, plastics, composites, etc
-
Zero, sound velocity and two-point calibration
-
Data storage and recall
-
Single and continuous measurement(scanning) modes
-
Metric(mm) and imperial(inch) measurement units
-
Inbuilt self-calibrator and simple calibration function
-
Automatic power off
-
Applications
-
Based on ultrasonic measuring principle, thickness of metal and other materials can be measured
-
So, it can monitor the degree of thinning, caused by corrosion, of all kinds of tubes and pressure vessels during working process, and accurately measure the thickness of all kinds of plates and processing parts
-
This gauge is applied widely in fields, such as petroleum, chemical, metallurgical, shipbuilding, aerospace industry, etc
-
Measuring Principle
-
Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall
-
In Pulse-Echo mode it measures the time taken for the pulse to travel from backwall, consequently measuring the total thickness of the sample
-
In Echo-Echo mode, it measures the time taken between the first echo and the next, thereby eliminating paint or coating thickness and measuring total thickness minus the coating thickness, hence, called through coating thickness
ProductSpecification
| Brand | Metrix Plus |
| Product Type | Thickness Meter |
| Product Model | UTM 18CT |
| Display | Backlit LCD |
| Measuring Range | With standard probe: Pulse-Echo mode: 0.65 - 600mm (Steel) Echo-Echo mode: 3 ~ 60mm (Steel) |
| Accuracy | ±(0.5%n + 0.05)mm, depending upon material and conditions |
| Resolution | 0.1mm / 0.01mm |
| Sound Velocity | 1000 ~ 9999 m/s |
| Memory | Upto 20 files (99 values for each file) |
| Measurement Frequency | 4 times per second for single point mode 10 times per second for continuous measurement(scan) mode |
| Operating Conditions | Temperature: 0 ~ 40oC; Humidity < 85% RH |
| Power | 1.5V x 4 AAA batteries |
| Standard Accessories | Main unit, standard probe (PT5: 8mm/5MHz), couplant, user manual & hard carry case |
| Optional Accessories | PC interface, Bluetooth |
| Optional Probes | PT2.5 – 10mm/2.5MHz for plastics and cast iron PT7 – 6mm/7MHz for thin and small steel parts PT HT5 – 12mm/5MHz ceramic probe for high temperature measurement on steel surfaces PT5 – 8mm/5MHz standard default probe Calibration step block |
| Size | 142 × 72 × 34 mm (Excluding battery) |
| Weight | 175 g |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.175 kg |
| Generic Type | Thickness Meter |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
