SKU # 1000136494

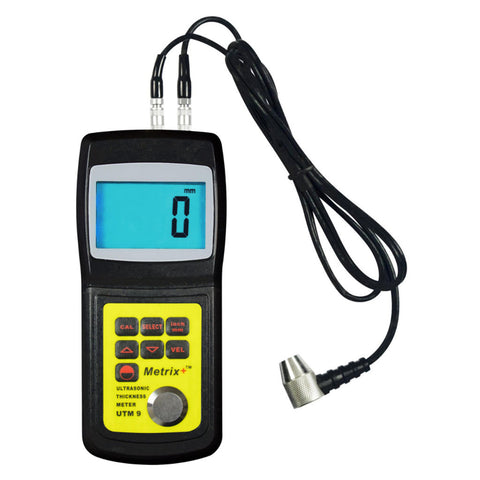

Metrix Plus Digital Ultrasonic Thickness Meter UTM 9

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
Key Features
-
Sturdy metal body
-
0.1mm/ 0/01mm switchable resolution
-
Preset material velocities for easy selection with custom velocity input
-
Inbuilt self-calibrator and simple calibration function
-
Automatic power off
-
Applications
-
Based on ultrasonic measuring principle, thickness of metal and other materials can be measured
-
So, it can monitor the degree of thinning, caused by corrosion, of all kinds of tubes and pressure vessels during working process, and accurately measure the thickness of all kinds of plates and processing parts
-
This gauge is applied widely in fields, such as petroleum, chemical, metallurgical, shipbuilding, aerospace industry, etc
-
Measuring Principle
-
Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall
ProductSpecification
Brand | Metrix Plus |
Product Type | Thickness Meter |
Product Model | UTG 27 |
Display | 4 digit Backlit LCD |
Measuring Range | 0.75 - 400mm (45# Steel) inch/mm switchable |
Accuracy | ±0.5%n + 0.1mm |
Resolution | 0.1mm / 0.01mm switchable |
Sound Velocity | 500 ~ 9000 m/s |
Operating Conditions | 0 ~ 40oC, Humidity < 80% |
Power | 1.5V x 2 AA batteries |
Standard Accessories | Ultrasonic sensor, couplant, user manual & hard carry case |
Optional Accessories | 6MM probe for small & curved surface/pipes 8MM probe Standard probe HT Ceramic probe for high temperature surfaces PC interface (cable and software) Calibration step block (4step and 10step) |
Size | 130 × 76 × 32 mm (Excluding battery) |
Weight | 340 g |
Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
Dimension (CM) - L x B x H | 13 × 76 × 32 |
Unit Of Measurement | 1 Piece |
Weight | 0.340 kg |
Generic Type | Thickness Meter |
Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
Country Of Origin | India |
