SKU # 1000136492

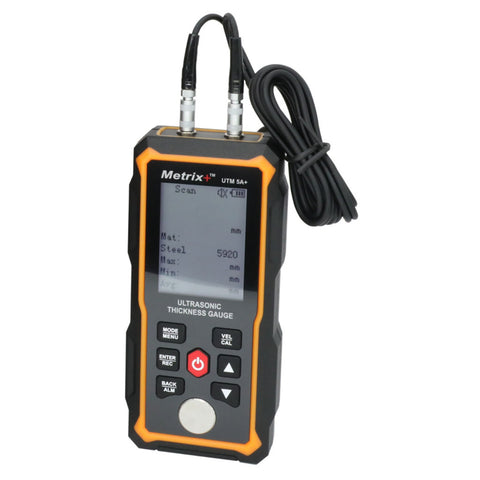

Metrix Plus Digital Ultrasonic Thickness Gauge UTM 5A+

Metrix Plus Digital Ultrasonic Thickness Gauge UTM 5A+

Visit the Metrix Plus Store

₹ 14,140.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Digital Ultrasonic Thickness Meter to measure 1 ~ 300mm with user-friendly menu interface and type C charging

  • Features

  • User friendly menu operation with dot matrix display

  • DC 5V/1A type C charging with 2000mAh battery

  • Memory storage with each set of measured value, sound velocity, max, min and avg value

  • Measure material sound velocity using 1 point calibration

  • Option for silent operation and auto power off for conserving battery

  • Applications

  • Applicable to measure the thickness of many materials, like steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron

  • It is widely used in almost all kinds of industries

  • Measuring Principle

  • Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall

ProductSpecification

Brand

Metrix Plus

Product Type

Thickness Gauge

Product Model

UTM 5A+

Display

240 x 320 Dot matrix display with adjustable backlight and user friendly menu operation

Measuring Range

1 ~ 300mm (in steel)

Accuracy

H < 10mm, +0.1mm

H >= 10mm, +(0.1 + 1.0%H)mm

H = real thickness of sample

Resolution

0.1mm/0.01mm/0.01inch

Sound Velocity Range

1000 ~ 9999 m/s

Units

mm, inch

Minimum Size Of Tube

Ф20 x 3mm (steel)

Memory

300 sets of records

Additional Functions

Menu operation, single and continuous measurement modes, alarm measurement, sound velocity measurement and probe calibration

Power Supply

2000mAh battery with type C charging

Standard Accessories

Main unit, standard probe, coupling agent, manual, charging cable, gift box

Size

140 x 66 x 28.5 mm

Weight

0.15 kg

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

14 x 66 x 28.5

Unit Of Measurement

1 Piece

Weight

0.15 kg

Generic Type

Thickness Gauge

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
