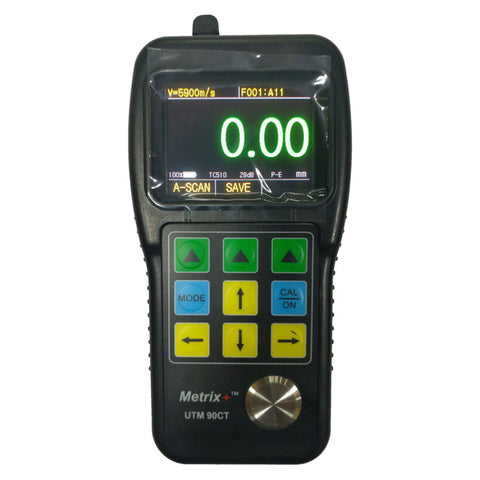

Metrix Plus Digital Ultrasonic Thickness Gauge UTM 90CT

Metrix Plus Digital Ultrasonic Thickness Gauge UTM 90CT

Visit the Metrix Plus Store

₹ 160,890.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Ultrasonic Thickness Gauge with through coating measurement and A-scan and B-scan functions

  • Features

  • Multi-mode with Pulse-Echo for thickness and Echo-Echo for through coating measurements

  • A scan & B scan functions for in depth inspection of material properties

  • Difference and reduction rate display

  • Max, min and current values can be displayed simultaneously

  • Selectable update rate

  • Data storage and recall

  • Applications

  • Applicable to measure the thickness of many materials, like steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials

  • Having through coating measurement capability, it can used to measure concrete coating thickness It is widely used in almost all kinds of industrie

  • Measuring Principle

  • Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall

ProductSpecification

Brand

Metrix Plus

Product Type

Thickness Gauge

Product Model

UTM 90CT

Display

2.4” color OLED with 320 x 240 pixel and contrast of 10000:1

Measuring Range

Pulse-Echo Mode: 1.2 ~ 200mm(in Steel)

Echo-Echo Mode: 3 ~ 50mm Through-Coating measurement

Units

mm/ inch

Resolution

Selectable: 0.01mm/inch, 0.1mm/inch

Sound Velocity

500 ~ 9999 m/s

Display Modes

Normal, min/max, difference/ reduction rate(%), A-scan, B-scan

Rectify Mode

RF+, RF-, HALF+, HALF-, FULL

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

Alarm Setting

Min and max alarms with dynamic waveform color change on alarm

Power

2 x AA batteries

Operating Time

Approximately. 40hrs

Power Off

Selectable as always ON, or Auto OFF on 5/ 10/ 20 mins of inactivity

Operating Temperature

-10°C ~ 50°C

Standard Accessories

Main unit, probe, couplant, manual, batteries, carry case

Dimensions (H x L x B)

156 x 75 x 38 mm (Include batteries)

Weight

270 g

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

156 x 75 x 38

Unit Of Measurement

1 Piece

Weight

0.270 kg

Generic Type

Thickness Gauge

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
