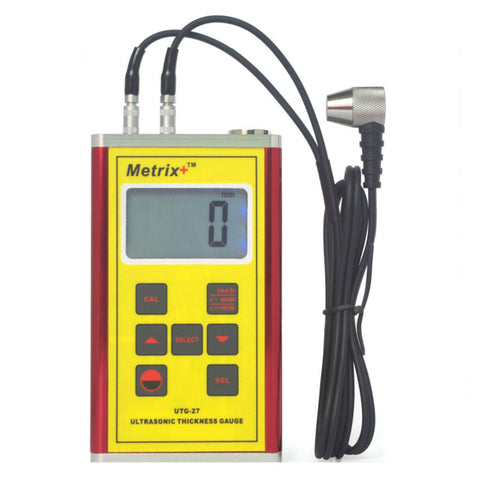

Metrix Plus Digital Ultrasonic Thickness Meter UTG 27

Metrix Plus Digital Ultrasonic Thickness Meter UTG 27

Visit the Metrix Plus Store

₹ 26,400.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Sturdy metal body

  • 0.1mm/ 0/01mm switchable resolution

  • Preset material velocities for easy selection with custom velocity input

  • Inbuilt self-calibrator and simple calibration function

  • Automatic power off

  • Applications

  • Based on ultrasonic measuring principle, thickness of metal and other materials can be measured

  • So, it can monitor the degree of thinning, caused by corrosion, of all kinds of tubes and pressure vessels during working process, and accurately measure the thickness of all kinds of plates and processing parts

  • This gauge is applied widely in fields, such as petroleum, chemical, metallurgical, shipbuilding, aerospace industry, etc

  • Measuring Principle

  • Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall

ProductSpecification

Brand

Metrix Plus

Product Type

Thickness Meter

Product Model

UTG 27

Display

4 digit Backlit LCD

Measuring Range

0.75 - 400mm (45# Steel) inch/mm switchable

Accuracy

±0.5%n + 0.1mm

Resolution

0.1mm / 0.01mm switchable

Sound Velocity

500 ~ 9000 m/s

Operating Conditions

0 ~ 40oC, Humidity < 80%

Power

1.5V x 2 AA batteries

Standard Accessories

Ultrasonic sensor, couplant, user manual & hard carry case

Optional Accessories

6MM probe for small & curved surface/pipes 8MM probe Standard probe HT Ceramic probe for high temperature surfaces PC interface (cable and software) Calibration step block (4step and 10step)

Size

130 × 76 × 32 mm (Excluding battery)

Weight

340 g

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

13 × 76 × 32

Unit Of Measurement

1 Piece

Weight

0.340 kg

Generic Type

Thickness Meter

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
