SKU # 1000062095

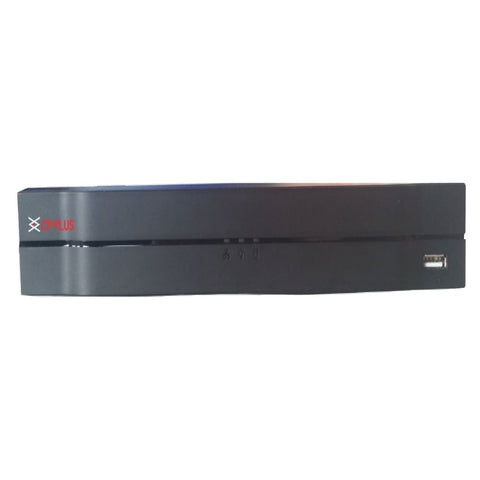

CP Plus 8Ch 4K H.265 Cosmic HD DVR (WITHOUT HDD) CP-UVR-0801L1-4KH
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
-
Support upto 8MP IP Camera
-
Max 48Mbps Incoming Bandwidth
-
H.265+ /H.265 dual-stream Video Compression
-
HDMI / VGA Simultaneous Video Output
-
Support 1 SATA HDD up to 10TB, 2 USB Ports
-
Mobile Software: iCMOB, gCMOB
-
CMS Software:KVMS, KVMS Pro
Product Specification
Brand |
CP Plus |
Model No |
CP-UVR-0801L1-4KH |
Product Type |
DVR |
Processor |
Embedded processor |
Operating System |
Embedded LINUX |
IP Camera Input |
8+4 Ch. : each channel up to 8MP |
Two-way Talk |
Reuse audio in/out, RCA |
User Interface |
GUI |
Video Output |
1 HDMI, 1 VGA |
Video Resolution |
HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, VGA: 1920×1080, 1280×1024, 1280×720 |
Video Recording |
Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps),Sub stream: 960H(1~15fps); D1/CIF(1~25/30fps) |
Video Display Split |
1/4/8/9 |
Video Channel |
8 channel, BNC |
Video Standard |
Analog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
Audio Output |
1 channel, RCA |
Audio Channel |
1 channel, RCA |
Motion Detection |
MD Zones: 396 (22 × 18) |
Video Loss |
Supports |
Smart Phone |
iPhone, iPad, Android Phone |
Hard Disk |
1 SATA port, up to 10TB |
Trigger Events |
Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Recording Mode |
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
Backup Mode |
USB Device/ Network |
Playback |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
Max User Account |
128 users |
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Ethernet |
1 RJ-45 port (1000M) |
Interface Ports |
1 HDMI, 1 VGA, 2 USB Ports(1 USB 2.0, 1 USB 3.0), 1 RS485 |
Protocols |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant |
Power Supply |
DC12V/2A |
Power Consumption |
<10W(without HDD) |
Working Temp |
-10 ~+55°C / 10~90%RH |
Dimension |
260mm×236mm×48mm |
Weight |
0.9kg (without HDD) |
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
