Out of Stock!
SKU # 1000094930

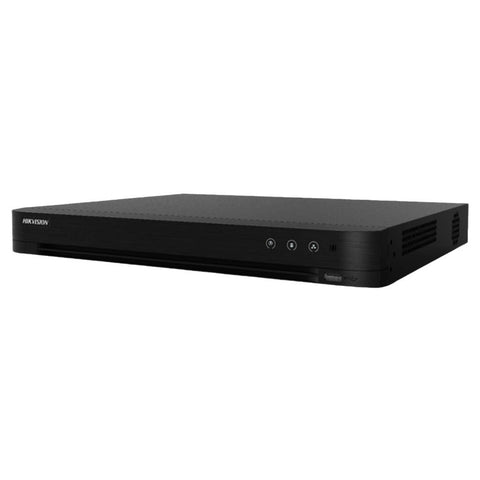

Hikvision Turbo HD DVR With Acusense 8 Channel 1080p 1U H.265 IDS-7208HQHI-M2/S
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
8 channels and 2 HDDs 1U AcuSense DVR
False alarm reduction through human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Up to 8 network cameras can be connected
Product Specification
Brand |
Hikvision |
Product Type |
DVR |
Product Code |
IDS-7208HQHI-M2/S |
Recording |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding Resolution |
Main Stream: When 1080p Lite Mode Not Enabled: For 4 Mp Stream Access: 4 Mp Lite@15 Fps; 1080p Lite/720p/Wd1/4cif/Vga/Cif@25 Fps (p)/30 Fps (n) For 3 Mp Stream Access: 3 Mp/1080p/720p/Vga/Wd1/4cif/Cif@15 Fps For 1080p Stream Access: 1080p/720p@15 Fps; Vga/Wd1/4cif/Cif@25 Fps (p)/30 Fps (n) For 720p Stream Access: 720p/Vga/Wd1/4cif/Cif@25 Fps (p)/30 Fps (n) When 1080p Lite Mode Enabled: 4 Mp Lite/3 Mp@15 Fps; 1080p Lite/720p Lite/Vga/Wd1/4cif/Cif@25 Fps (p)/30 Fps (n) Sub-Stream: Wd1/4cif@12 Fps; Cif@25 Fps (p)/30 Fps (n) |
Video Bitrate |
32 Kbps To 6 Mbps |
Dual-Stream |
Support |
Stream Type |
Video, Video & Audio |
Audio Compression |
G.711u |
Audio Bitrate |
64 Kbps |
Video And Audio |
|
Ip Video Input |
2-Ch (up To 10-Ch) Up To 6 Mp Resolution Enhanced Ip Mode On: 4-Ch (up To 6-Ch), Each Up To 4 Mbps Support H.265+/H.265/H.264+/H.264 Ip Cameras |
Analog Video Input |
8-Ch;Bnc Interface (1.0 Vp-P, 75 Ω), Supporting Coaxitron Connection |
Hdmi Output |
1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz, Hdmi/Vga Simultaneous Output |
Cvbs Input |
Pal/Ntsc |
Cvbs Output |
1-Ch, Bnc (1.0 Vp-P, 75 Ω), Resolution: Pal: 704 × 576, Ntsc: 704 × 480 |
Synchronous Playback |
8-Ch |
Hdtvi Input |
3 Mp, 1080p30, 1080p@25 Fps, 720p@60 Fps, 720p@50 Fps, 720p@30 Fps, 720p@25 Fps Note: The 3 Mp Signal Input Is Only Available For Channel 1 Of Ids-7204hqhi-M1/S, For Channel 1/2 Of Ids-7208hqhi-M1/S, And For Channel 1/2/3/4 Of Ids-7216hqhi-M2/S |
Ahd Input |
4 Mp, 1080p@25 Fps, 1080p@30 Fps, 720p@25 Fps, 720p@30 Fps |
Hdcvi Input |
4 Mp, 1080p@25 Fps, 1080p@30 Fps, 720p@25 Fps, 720p@30 Fps |
Audio Output |
1-Ch, Rca (linear, 1 Kω) |
Audio Input |
1-Ch, Rca (2.0 Vp-P, 1 Kω), |
Wo-Way Audio |
1-Ch, Rca (2.0 Vp-P, 1 Kω) (using The First Audio Input) |
Network |
|
Network Protocol |
Tcp/Ip, Pppoe, Dhcp, Hik-Connect, Dns, Ddns, Ntp, Sadp, Nfs, Iscsi, Upnp™, Https, Onvif |
Remote Connection |
64 |
Network Interface |
1, Rj45 10m/100m Self-Adaptive Ethernet Interface |
Auxiliary Interface |
|
Sata |
2 Sata Interface |
Capacity |
Up To 10 Tb Capacity For Each Disk |
Serial Interface |
Rs-485 (half-duplex) |
Usb Interface |
Front Panel: 1 × Usb 2.0 Rear Panel: 1 × Usb 2.0 |
Alarm In/Out |
N/A |
General |
|
Power Supply |
12 Vdc |
Consumption |
≤ 30 W |
Working Temperature |
-10 °c To +55 °c (+14 °f To +131 °f) |
Working Humidity |
10% To 90% |
Dimension (w × D × H) |
380 × 320× 48 Mm |
Weight |
≤ 1.16 Kg |
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
