Out of Stock!
SKU # 1000052792

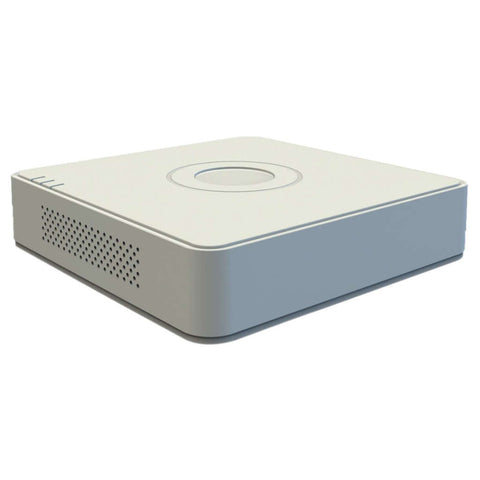

Hikvision Turbo HD DVR 2MP 8CH PLASTIC DS-7A08HQHI-K1
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Video Input and Transmission
-
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
-
Up to 2-ch 4 MP IP cameras input
-
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
-
Compression and Recording
-
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
-
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
-
H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
-
Up to 3 MP resolution for recording of channel 1 of DS-7A04HQHI-K1, channel 1/2 of DS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1
-
Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
-
Video Output
-
Simultaneous HDMI/VGA output
Product Specification
Brand |
Hikvision |
Product Code |
DS-7A08HQHI-K1 |
Product Type |
Digital Video Recorder |
Power supply |
12 VDC |
Consumption (without HDD) |
≤ 12 W |
Working temperature |
-10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
Working humidity |
10% to 90% |
Video/Audio input |
|
Video compression |
H.265+/H.265/H.264+/H.264 |
Analog and HD-TVI video input |
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
HDTVI input |
3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for channel 1 of DS-7A04HQHI-K1, channel 1/2 of DS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1 |
AHD input |
1080p25, 1080p30, 720p25, 720p30 |
HDCVI input |
1080p25, 1080p30, 720p25, 720p30 |
CVBS input |
Support |
IP video input |
2-ch Up to 4 MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras |
Audio compression |
G.711u |
Audio input/Two way audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
Video/Audio output |
|
HDMI/VGA output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Encoding resolution |
When 1080p Lite mode not enabled: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF |
Video bit rate |
32 Kbps to 6 Mbps |
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
Audio bit rate |
64 Kbps |
Dual stream |
Support |
Stream type |
Video, Video & Audio |
Synchronous playback |
8-ch |
Network management |
|
Remote connections |
128 |
Network protocols |
TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UpnP, HTTPS |
Hard disk |
|
SATA |
1 SATA interface |
Capacity |
Up to 6 TB capacity for each disk |
External interface |
|
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB interface |
Real panel: 2 × USB 2.0 |
Dimensions (W × D × H) |
201 × 200 × 45 mm |
Weight |
1 Kg |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
