SKU # 1000103050

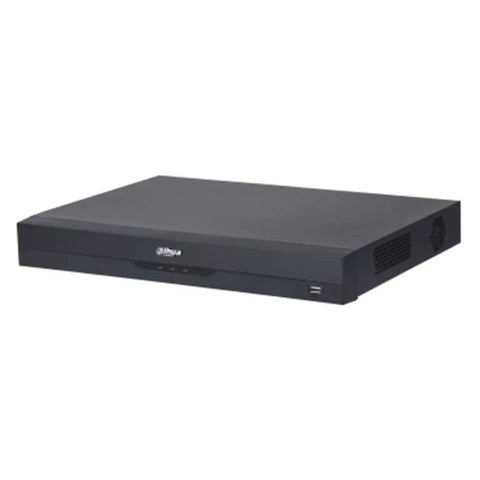

Dahua WizSense Digital Video Recorder 8 Channel 4K 1U 2HDDs DH-XVR5208AN-4KL-I3

Dahua WizSense Digital Video Recorder 8 Channel 4K 1U 2HDDs DH-XVR5208AN-4KL-I3


₹ 13,070.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 7-10 Business days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • H.265+/H.265 dual-Stream video compression

  • Supports Full-channel AI Coding

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs

  • Max 16 channels IP camera inputs, each channel up to 8MP; Max

  • 128 Mbps incoMinimumg bandwidth

  • Up to 2 channels video Stream (analog channel) Perimeter Protection

  • Up to 8 channels video Stream (analog channel) SMD Plus

  • Up to 2 channels video Stream (analog channel) human face recognition

  • IoT & POS functionalities

  • Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable

  • Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chIP and deep learning algorithm

  • It focuses on human and vehicle with high accuracy, enabling useRS to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions

  • Series Overview

  • Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring Maximumfull-channel SMD Plus to benefit customeRS from

  • AI upgrade (The number of channels diffeRS depending on the model
    Please refer to the specifications below for information on the numberof channels.)

  • This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customeRS in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities

  • Functions

  • Real Time Face Recognition

  • Video Stream real time face recognition. Facial attributes analysis features including gender, age, expression, glasses, moustache, face mask. Identify people and also capture, record faces with metadata

  • Facial feature filtering while real time display, Only show faces with target features

  • Perimeter Protection

  • Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy

  • SMD Plus

  • With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize

  • effective and accurate alarm

  • AI Coding

  • Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details

  • Smart H.265+

  • Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras

  • HDCVI/AHD/TVI/CVBS Auto-detect

  • The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient

  • High Definition Camera Input

  • The XVR supports up to 4K HDCVI camera and 8MP IP camera input

  • Coaxial Audio/Upgrade/Alarm

  • The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation

  • Long Distance Transmission

  • The HDCVI system supports long distance transmission over coaxial cableand UTP, Maximum 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p

  • AI Search

  • Support AI seach by metadata of different targets or uploading face pictures to device and comparing them with recorded faces by similarity

  • Enable operatoRS to quickly and easily search through multi channels and long duration, efficiently find out when and where a peRSon of interest appeard

Product Specification

Brand

Dahua

Product Type

Digital Video Recorder

Product Code

DH-XVR5208AN-4KL-I3

Series

WizSense

Main Processor

Embedded processor

Operating System

Embedded Linux

Perimeter Performance AI by Recorder (Number of Channels)

2 channels

Face Attributes

6 attributes: Gender, age groups (6), glasses, expression(8), face mask, beard, with up to four detection panels displayed at the same time.

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels, and a single channel can detect up to 12 faces.

Face Database Capacity

Up to 10 face databases and 20,000 pictures.

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus by Recorder

Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Analog Camera Input

8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. 2. TVI: 4K, 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fps. 3. AHD: 4K, 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/3fps.

IP Camera Input

8+8 channels, each channel up to 8MP *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

All channel 4K (1 fps–7 fps); 6MP (1 fps–10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps);

Dual-Stream

Supported (960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)).

Video Frame Rate

PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps.

Video Bit Rate

32 Kbps–6144 Kbps Per Channel

Audio Sampling

8 KHz, 16 bit Per Channel

Audio Bit Rate

64 Kbps Per Channel

Bit Rate Type

Video Stream and composite stream.

Video Output

1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Third-Party Camera Access

Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Video Compression

AI Coding/H.265+/H.265/H.264+/H.264

Audio Compression

G.711A/G.711u/PCM

Network Protocol

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Mobile Phone Access

IPhone, IPad, AndROId

Interoperability

ONVIF 16.12, CGI Conformant

Browser

Chrome, IE9 or above, Firefox

Network Mode

Single-address mode

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Recording Playback

1/4/09

Backup Method

USB Device/Network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Disk Group

Yes

General Alarm

Motion detection, Video Loss, tampering, and local alarm

Anomaly Alarm

No disk, disk error, low space, offline, IP conflict, MAC conflict

Intelligent Alarm

Face detection, face recognition, perimeter protection

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voic prompt, buzzer, log, preset, email

Audio Input

1, RCA (external) 8, BNC (coaxial)

Audio Output

1, RCA

Two-way Talk

Yes (share the same audio input with the fiRSt channel)

HDD Interface

2 SATA Ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature

RS-485

1 Port, for PTZ Control

USB

2 USB Ports (1 USB 2.0 , 1 USB 3.0)

HDMI

1

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

Power Supply

DC12V, 4A

Power Consumption

Lower than 10 W

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

8 Channel DVR

Manufacturer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China.

Packer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China.

Importer Details

Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100

Country of Origin

China
