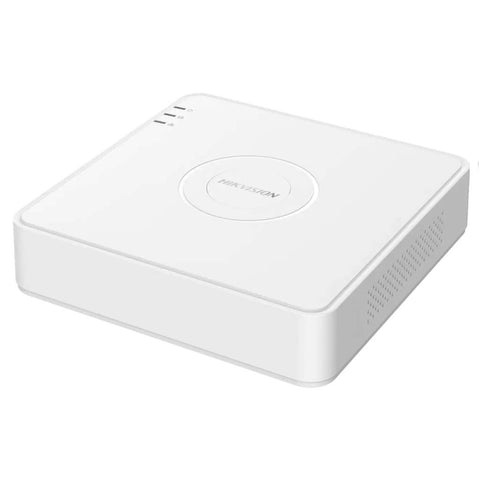

Hikvision Value Series DVR Lite Mini 1U H.265 8 Channel 1080P DS-7108HGHI-K1

Hikvision Value Series DVR Lite Mini 1U H.265 8 Channel 1080P DS-7108HGHI-K1


₹ 3,940.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • H.265 Pro+/H.265 Pro/H.265 video compression

  • HDTVI/AHD/CVI/CVBS/IP video input

  • Audio via coaxial cable

  • Up to 5-ch IP camera input (up to 1080p)

  • Encoding ability up to 1080p lite @ 25/30 fps

  • Max. 1200 m for 720p HDTVI signal

Product Specification

Brand

Hikvision

Product Type

DVR

Product Code

DS-7108HGHI-K1

Series

Value

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite Mode Not Enabled: 720p/Wd1/4cif/Vga/Cif When 1080p Lite Mode Enabled: 1080p Lite/Hd 720p Lite/Wd1/4cif/Vga/Cif

Frame Rate

Main Stream:When 1080p Lite Mode Not Enabled:
For 720p Stream Access:
720p/Wd1/4cif/Vga/Cif@15 Fps;
For Sd Stream Access:
Wd1/4cif/Vga/Cif@25 Fps (p)/30 Fps (n)
When 1080p Lite Mode Enabled:
1080p Lite/Hd 720p
Lite/Wd1/4cif/Vga/Cif@15 Fps

Sub-Stream:
Cif/Qvga@25 Fps (p)/30 Fps (n

Video Bitrate

32 Kbps To 4 Mbps

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video And Audio

Ip Video Input

2-Ch (up To 10-Ch)

Up To 5 Mp Resolution

Support H.265+/H.265/H.264+/H.264 Ip Cameras

Analog Video Input

8-Ch Bnc Interface (1.0 Vp-P, 75 Ω), Supporting Coaxitron Connection

Ahd Input

1080p25, 1080p30, 720p25, 720p30

Hdcvi Input

1080p25, 1080p30, 720p25, 720p30

Hdmi Output


1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz

Hdmi/Vga Simultaneous Output

Vga Output

1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz

Cvbs Input

Support

Synchronous Playback

8-Ch

Audio Output

1-Ch, Rca (linear, 1 KΩ)

Audio Input

1-Ch Rca (2.0 Vp-P, 1 KΩ)

8-Ch Via Coaxial Cable

Two-Way Audio

Reuse The First Audio Input

Network

Remote Connection

64

Network Protocol

Tcp/Ip, Pppoe, Dhcp, Hik-Connect, Dns, Ddns, Ntp, Sadp, Smtp, Nfs, Iscsi, Upnptm, Https

Network Interface

1, Rj45 10/100 Mbps Self-Adaptive Ethernet Interface

Auxiliary Interface

Sata

1 Sata Interface

Capacity

Up To 4 Tb Capacity For Each Disk

Usb Interface

Rear Panel: 2 × Usb 2.0

Alarm In/Out

N/A

General

Power Supply

12 Vdc,1.5 A

Consumption

17 W

Working Temperature

-10 °c To 55 °c (14 °f To +31 °f)

Working Humidity

10% To 90%

Dimension (w × D × H)

260 × 222 × 45 Mm (10.2× 8.7× 1.8 Inch)

Weight

1 kg (2.2 lb)

Warranty

As Per Manufacturer Terms And Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

8 Channel DVR

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country of Origin

India
