SKU # 1000102831

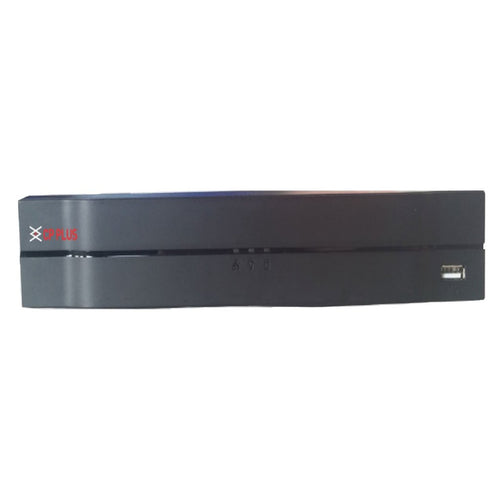

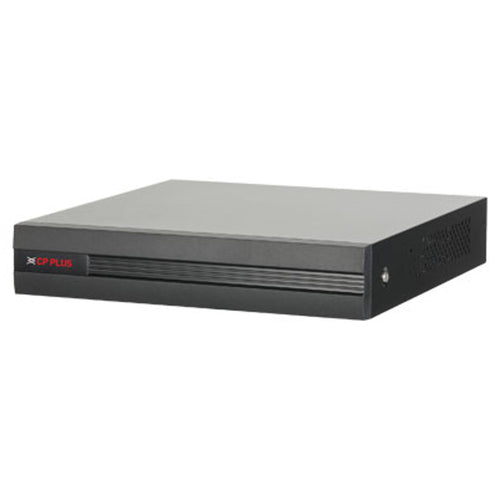

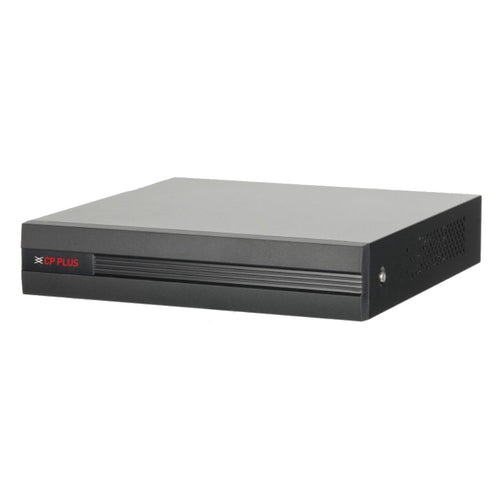

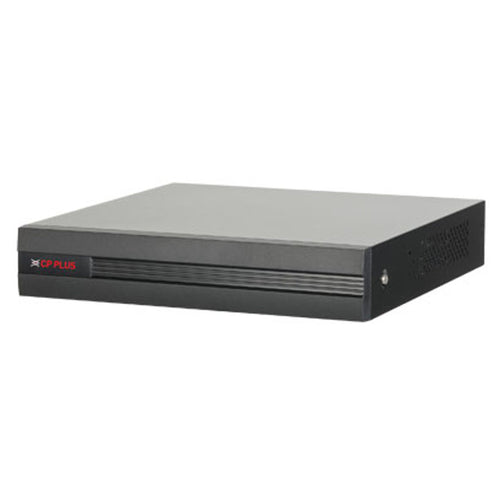

CP Plus Digital Video Recorder Without HDD 1080N 8 Channel CP-UVR-0801E1-CV2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 10 channels IP camera inputs, each channel up to 6MP; Maximum 40Mbps Incoming Bandwidth
-
H.265+/H.265/H.264+/H.264 video compression
-
1 HDMI / 1 VGA Simultaneous Video Output
-
Support 1 SATA HDD up to 6TB, 2 USB Ports
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
Brand |
CP Plus |
Product Type |
DVR |
Product Model |
CP-UVR-0801E1-CV2 |
Processor |
Embedded processor |
Operating System |
Embedded LINUX |
Ip Camera Input |
8+2 channels, each channel up to 6MP |
Two-Way Talk |
Reuse audio in/out, RCA |
User Interface |
GUI |
Video Output |
1 HDMI, 1 VGA |
Video Resolution |
1920×1080, 1280×1024, 1280×720, 1024x768 |
Video Recording |
Main Stream: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/CIF(1~25/30fps); Sub stream: CIF/QCIF(1~7fps) |
Video Compression |
H.265+/H.265/H.264+/H.264 |
Video Display Split |
1/4/8/9 |
Video Channel |
8 channel, BNC |
Audio Compression |
G.711A, G.711U, PCM |
Audio Output |
1 channel, RCA |
Audio Input |
1 channel, RCA |
Motion Detection |
MD Zones: 396(22 × 18) |
Video Loss |
Supports |
Alarm Input |
N/A |
Alarm Output |
N/A |
Bit Rate |
32 kbps–4096 kbps per channel |
Smart Phone |
iPhone, iPad, Android Phone |
Hard Disk |
1 SATA port, up to 6TB capacity |
Camera Blank |
Support |
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Recording Mode |
Manual, Schedule(Regular, Continuous), MD(Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
Search Mode |
Time /Date, Alarm, MD and Exact Search(accurate to second) |
Backup Mode |
USB Device |
Playback |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
Maximum User Account |
128 users |
Record Interval |
1~60 min(default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Ethernet |
1 RJ-45 port(100Mbps) |
Interface Ports |
2 USB Ports(USB 2.0) |
Protocols |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant |
Power Supply |
DC12V/1.5A |
Power Consumption |
<10W(without HDD) |
Working Temperature |
-10°C ~ +45°C(+14°F ~ +113°F), 10 ~ 90%(RH) |
Dimension |
198 mm × 203.0 mm × 41.5 mm |
Weight |
0.55kg(without HDD) |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
