SKU # 1000094942

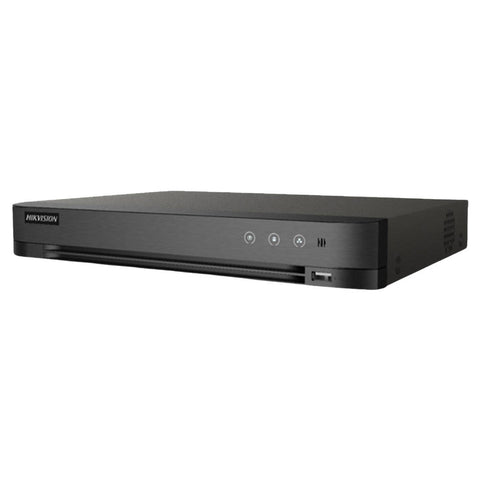

Hikvision Turbo HD DVD With AcuSense DVR 8 Channel 5MP 1U H.265 IDS-7208HUHI-M1/FA
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Deep learning-based behavior analysis or face picture comparison
-
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
-
HDTVI/AHD/CVI/CVBS/IP video inputs
-
Audio via coaxial cable
-
Up to 8/16-ch IP camera inputs (up to 8 MP)
-
Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
-
Up to 10 TB capacity per HDD
Product Specification
|
Brand |
Hikvision |
|
Product Type |
DVR |
|
Product Code |
IDS-7208HUHI-M1/FA |
|
Smart Analysis |
|
|
Face Detection And Capture |
Face Picture Comparison, Face Picture Search |
|
Face Picture Library |
Up To 16 Face Picture Libraries, With Up To 500 Face Pictures In Total (each Picture ≤ 1 Mb, Total Capacity ≤ 80 Mb) |
|
Face Picture Comparsion |
1-Ch Face Picture Comparison Alarm (hd Analog Camera |
|
Human/Vehicle Analysis |
|
|
False Alarm Reduction |
Up To 4-Ch |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
Main Stream: 8 Mp@8 Fps/5 Mp@12 Fps/4 Mp@15 Fps/3 Mp@18 Fps 1080p/720p/Wd1/4cif/Vga/Cif@25 Fps (p)/30 Fps (n) Note: 8 Mp@8 Fps Is Only Available For Channel 1. Sub-Stream: Wd1/4cif/Cif@25 Fps (p)/30 Fps (n) |
|
Video Bitrate |
32 Kbps To 10 Mbps |
|
Dual-Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Video And Audio |
|
|
Ip Video Input |
4-Ch (up To 18-Ch) Up To 6 Mp Resolution Ip Enhanced Mode On: 8-Ch (up To 24-Ch), Each Up To 4 Mbps Support H.265+/H.265/H.264+/H.264 Ip Cameras |
|
Analog Video Input |
8-Ch Bnc Interface (1.0 Vp-P, 75 Ω), Supporting Coaxitron Connection |
|
Hdtvi Input |
8 Mp, 5 Mp, 4 Mp, 3 Mp, 1080p30, 1080p@25 Fps, 720p@60 Fps, 720p@50 Fps, 720p@30 Fps, 720p@25 Fps Note: The 8 Mp Signal Input Is Only Available For Channel 1. |
|
Ahd Input |
5 Mp, 4 Mp, 1080p@25 Fps, 1080p@30 Fps, 720p@25 Fps, 720p@30 Fps |
|
Hdcvi Input |
4 Mp, 1080p@25 Fps, 1080p@30 Fps, 720p@25 Fps, 720p@30 Fps |
|
Cvbs Input |
Pal/Ntsc |
|
Cvbs Output |
1-Ch, Bnc (1.0 Vp-P, 75 Ω), Resolution: Pal: 704 × 576, Ntsc: 704 × 480 |
|
Vga Output |
1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz Hdmi/Vga Simultaneous Output |
|
Hdmi Output |
1-Ch, 2k (2560 × 1440)/60hz, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz Hdmi/Vga Simultaneous Output |
|
Audio Input |
1-Ch, Rca (2.0 Vp-P, 1 Kω)，16-Ch Via Coaxial Cable |
|
Audio Output |
1-Ch, Rca (linear, 1 Kω) |
|
Two-Way Audio |
1-Ch, Rca (2.0 Vp-P, 1 Kω) (using The First Audio Input) |
|
Synchronous Playback |
8-Ch |
|
Network |
|
|
Remote Connection |
64 |
|
Network Protocol |
Tcp/Ip, Pppoe, Dhcp, Hik-Connect, Dns, Ddns, Ntp, Sadp, Nfs, Iscsi, Upnp™, Https, Onvif |
|
Network Interface |
1, Rj45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
|
Auxiliary Interface |
|
|
Sata |
1 Sata Interface, Up To 10 Tb Capacity For Each Disk |
|
Serial Interface |
Rs-485 (half-duplex) |
|
Usb Interface |
Front Panel: 1 × Usb 2.0; Rear Panel: 1 × Usb 3.0 |
|
Alarm In/Out |
N/A |
|
General |
|
|
Power Supply |
12 Vdc, 3.3 A |
|
Consumption |
≤ 15 W |
|
Working Temperature |
-10 °c To 55 °c (14 °f To 131 °f) |
|
Working Humidity |
10% To 90% |
|
Dimension (w × D × H) |
315 × 242 × 45 Mm |
|
Weight |
≤ 2 Kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
