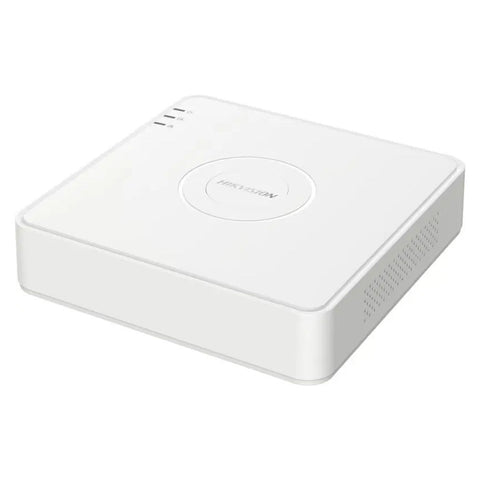

Hikvision Value Series AcuSense DVR Mini 1U H.265 8 Channel 1080P iDS-7108HQHI-M1/S

Brand

Hikvision

Product Type

DVR

Product Model

iDS-7108HQHI-M1/S

Series

Value Series

Motion Detection2.0

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can

Human/Vehicle Analysis

classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 4-ch

Facial Detection

Facial Detection And Capture

Face picture detection, face picture search

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Recording

Frame Rate

Main stream:

When 1080p Lite mode not enabled

For 3K stream access: 3K lite12fps;4 MP lite/1080p15fps;720p/WD1/4CIF/VGA/CIF20fps For 5 MP stream access: 5 MP lite12fps;4 MP lite/1080p15fps;720p/WD1/4CIF/VGA/CIF20fps For 4 MP stream access: 4 MP lite/1080p15fps;720p/WD1/4CIF/VGA/CIF25fps (P)/30fps (N) For 1080p stream access: 1080p/720p15fps; VGA/WD1/4CIF/CIF25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite12fps;4 MP lite15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF25fps (P)/30fps (N) Sub-stream: WD1/4CIF12fps; CIF25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 6 Mbps

Dual-Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

IP Video Input

2-ch (up to 10-ch)

Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

3K(2960 x 1665)20 fps, 5 MP(2560 × 1944)20 fps, 4 MP(2560 × 1440)30 fps, 4 MP(2560 × 1440)25 fps,1080p30 fps, 1080p25 fps,720p30 fps, 720p25 fps

AHD Input

5 MP(2592 × 1944)20 fps,4 MP(2560 × 1440)30 fps, 4 MP(2560 × 1440)25 fps, 1080p30 fps, 1080p25 fps, 720p30 fps, 720p25 fps

Video Audio And HDCVI Input

5 MP(2592 × 1944)20 fps,4 MP(2560 × 144030 fps, 4 MP(2560 × 1440)25 fps, 1080p30 fps, 1080p25 fps, 720p30 fps, 720p25 fps

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

8-ch

Total Bandwidth

96 Mbps

Remote Connection

64

Network Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

SATA

1 SATA interface

Auxiliary Capacity

Up to 10 TB capacity for each disk

Interface Alarm In/Out

N/A

USB Interface

Real panel: 2 × USB 2.0

Power Supply

12 VDC, 1.33 A

Consumption

≤ 12 W (without HDD)

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

General Working Humidity

10% to 90%

Dimension (W × D × H)

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight

≤ 1 kg (without HDD, 2.2 lb)

Warranty

As Per Manufacturer Terms and Condition

Dimension (CM) - L x B x H

200 × 200 × 45

Unit Of Measurement

1 Piece

Weight

1 kg

Generic Type

8 Channel DVR

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country Of Origin

India
