SKU # 1000136600

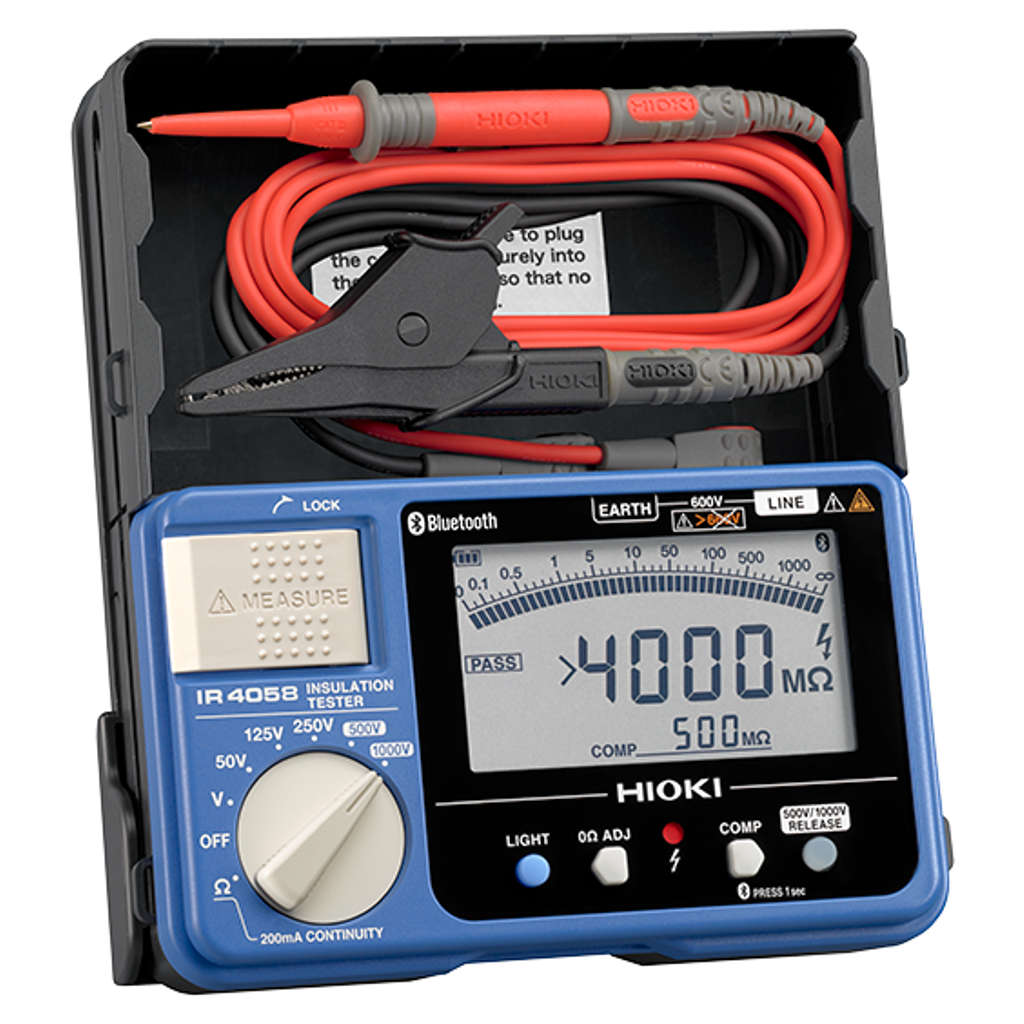

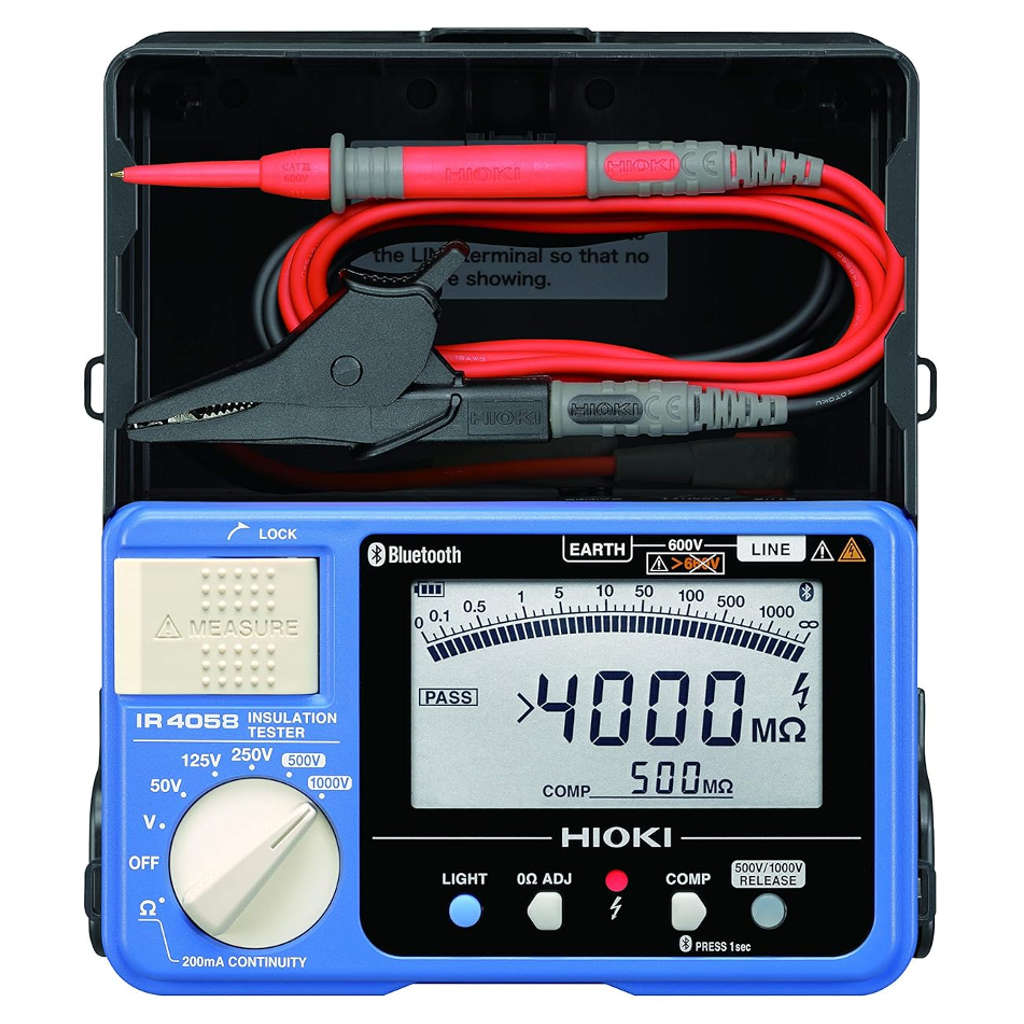

Hioki Digital Insulation Tester IR4058-20
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments
-
The IR4058 is a 5-range, 50V to 1000V digital insulation resistance tester with bar-graph, and delivers efficient functions and features to help shorten work time associated with field insulation testing
-
Measured values held on the display are sent immediately to a smartphone or tablet via Bluetooth technology
-
Stable & high-speed digital readings, 0.3 second response time for PASS/ FAIL decisions
-
Drop proof onto concrete from 1m (3.28 ft.)
-
Bright LED, luminous LCD, test lead with bright LED lamp to illuminate near hand (Option L9788-11 or L9788-10)
-
Continuity check via 200 mA testing
-
Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles
ProductSpecification
| Brand | Hioki | ||||
| Product Type | Insulation Tester | ||||
| Product Model | IR4058-20 | ||||
| Rated Output Voltage | 50 V DC | 125 V DC | 250 V DC | 500 V DC | 1000 V DC |
| Effective Maximum Indicated Value | 100 MΩ | 250 MΩ | 500 MΩ | 2000 MΩ | 4000 MΩ |
| Accuracy 1st Effective Measuring Range MΩ | ±2 % rdg. ±2 dgt. | ±2 % rdg. ±2 dgt. | ±2 % rdg. ±2 dgt. | ±2 % rdg. ±2 dgt. | ±2 % rdg. ±2 dgt. |
| Lower Limit Resistance | 0.05 MΩ | 0.125 MΩ | 0.25 MΩ | 0.5 MΩ | 1 MΩ |
| Overload Protection | 600 V AC (10s) | 660 V AC (10s) | |||
| DC Voltage Range | 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges, | ||||
| AC Voltage Range | 420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz, | ||||
| Low Resistance Range | For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less) | ||||
| Display | Semi-transmissive FSTN LCD with back lighting, bar-graph indicator | ||||
| Response Time | Approx. 0.3 second for PASS/FAIL decision (based on in-house testing) | ||||
| Other Functions | Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save | ||||
| Interface (IR4058 Only) | Bluetooth 4.0LE (Bluetooth SMART), Supported devices: iOS 8 or later, Android 4.3 or later smartphone/tablet | ||||
| Power Supply | LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (based on in-house testing), 10 hours (Bluetooth ON) | ||||
| Included Accessories | Test lead L9787 ×1, Neck strap ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4 | ||||
| Dimensions (W x H x D) | 159 x 177 x 53 mm 6.26 x 6.97 x 2.09 Inch | ||||
| Weight | 640 g / 22.6oz | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
OtherDetails
| Dimension (CM) L x B x H | 15.9 x 5.3 x 17.7 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.640 kg |
| Generic Name | Digital Insulation Tester |
| Packer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Importer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Country Of Origin | India |
