SKU # 1000136718

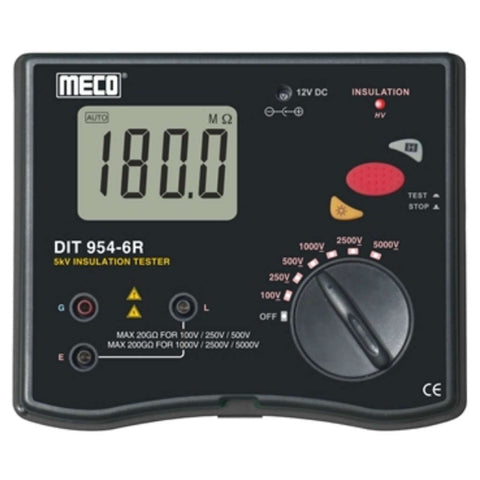

Meco Digital Insulation Tester DIT 954-6R

Meco Digital Insulation Tester DIT 954-6R

Visit the Meco Store

₹ 12,710.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • 3½ Digit 1999 Count Large LCD Display

  • 6 Ranges : 100V, 250V, 500V, 1000V, 2500V, 5000V DC

  • Range Selection & Single Person Push Button Operation

  • LCD with Green Backlight

  • Data Holding Function

  • Display with Annunciators

  • Auto Range (Insulation Test)

  • Red LED Indicator for HV (High Voltage)

  • Inbuilt Protection Circuit to prevent the harm of reverse Voltages

  • Battery Operated with AC Adaptor

  • As per IS10656-1983

  • As per EMC Standard IEC 61326-1 Class B

  • Over Voltage CAT III, 600V

  • As per Safety Standard IEC/EN 61010-1 & 61010-31

  • IP 44 Protection

ProductSpecification

Brand

Meco

Product Type

Digital Insulation Tester

Product Model

DIT 954-6R

Insulation Resistance

Test Voltage

Range

Accuracy

Resolution

100V / 250V / 500V DC

0.1MΩ to 200MΩ

±(3%rdg+5dgt.)

0.01MΩ to 0.01GΩ

200MΩ to 10GΩ

±(5%rdg+5dgt.)

10GΩ to 20GΩ

±(10%rdg+5dgt.)

1000V / 2500V / 5000V DC

0.1MΩ to 200MΩ

±(3%rdg+5dgt.)

0.01MΩ to 0.1GΩ

200MΩ to 10GΩ

±(5%rdg+5dgt.)

10GΩ to 200GΩ

±(10%rdg+5dgt.)

Display

3½ Digit (1999 Counts) Large LCD Display with 29mm Digit Height

Over-Range Indication

1’ is displayed

Operation Temperature

0°C to 40°C (RH ≤ 80%)

Storage Temperature

-10°C to 50°C (RH ≤ 75%)

Power

12V (Eight x 1.5V “AA” Battery) with AC Adaptor

Standard Accessories

Insulation Resistance Measurement Test Leads for high voltage x 1 Set, AC Adaptor x 1 pc, 1.5V “AA” Batteries x 8 pcs, Heavy Duty Carry Bag x 1 pc, Instruction manual x 1 no

Dimension

190 x 155 x 75 mm (Approximate)

Weight (Including Batteries)

900 gms (Approximate)

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) L x B x H

19 x 15.5 x 7.5

Unit Of Measurement

1 Piece

Weight

1 kg

Generic Name

Digital Insulation Tester

Manufacturer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Packer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Country Of Origin

India
