SKU # 1000136632

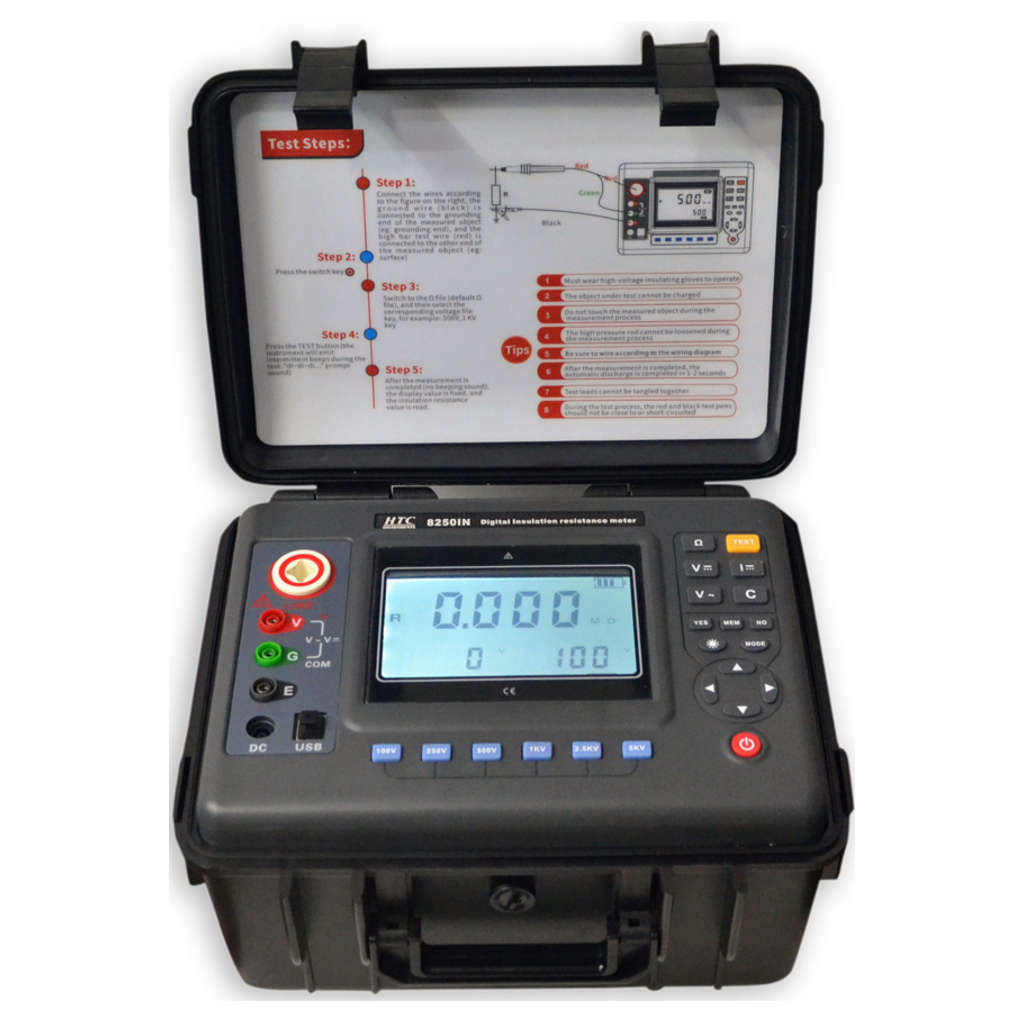

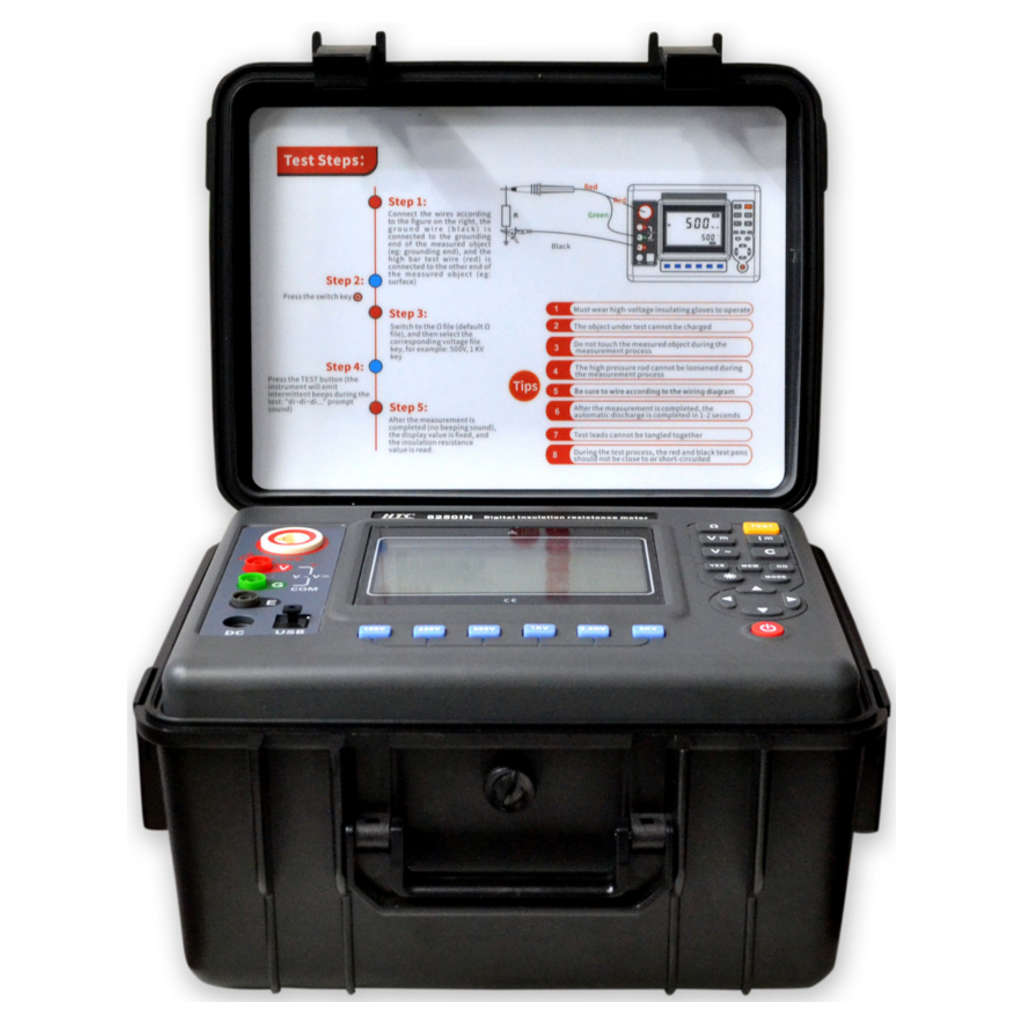

HTC Digital Insulation Tester 10KV-15KV 8252IN

HTC Digital Insulation Tester 10KV-15KV 8252IN

Visit the HTC Store

₹ 91,450.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Key Features

  • Polarization Index (PI)

  • Dielectric Absorption (DAR)

  • Auto Power Off (APO 15 Minutes)

  • USB Interface

  • High Voltage Indication

Product Specification

Brand

HTC

Product Type

Insulation Tester

Product Model

8251IN

Rated Applied Voltage

500;1000;2500;5KV;10KV;15KV

Resistance Limit Range

0.01 MΩ ~ 50TΩ

Resolution

0.01MΩ

Accuracy

±3%rdg±5dgt

Output Short-Circuit Current

6mA

Function

Insulation resistance test, voltage test, current test, capacitance test

Basic Condition

Basic condition23º±5º, below 75%rh

Rated Voltage (V)

500V;1000V;2500V;5000V;10 KV;15KV

Accuracy rated voltage x (1±10%)

Insulation Resistance Range (GΩ)

0.01MΩ -50TΩ

Accuracy

±3%rdg±5dgt

Resolution

0.01MΩ

DC Voltage Range

0.1~1000V

Accuracy

±1.5%rdg±5dg

Resolution

0.1V

AC Voltage Range

0.1~750V

Accuracy

±1.5%rdg±5dgt

Resolution

0.1V

DC Current Measurement

0.01nA~6mA

Accuracy

±5%rdg±5dgt

Resolution

0.01nA

Capacitance Test

10nF~60uF

Accuracy

±10%rdg±5dgt

Resolution

10nF

Power Consumption

Standby: 30mA Max (backlight off) | Turn on backlight: 42mA Max

Measure:200mA Max(backlight off)

Insulation Resistance

50MΩ(between Measuring line and housing

Pressure Resistance

AC3kV/50Hz 1min

Working Temperature And Humidity

-10%ºC+50ºC85%RH

Storage Temperature And Humidity

-10%ºC+55ºC90%RH

Included Components

Meter 1PC
High voltage bar 1PC Red
High voltage test line 2PCS (Black, Green each 1)
Monitoring Software CD 1PC
USB communication line USB 1PC
Charger 1PC
Manual, certificate 1 Set
Instrument Box 1PC

Instrument Weight

2720g (including battery)

Warranty

1 Year

Other Details

Dimension (CM) - L x B x H

19.7 x 7.3 x 3.4

Unit of Measurement

1 Piece

Weight

2.5 kg

Generic Type

Insulation Resistance Tester

Manufacturer Details

HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002

Packer Details

HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002

Country of Origin

India
