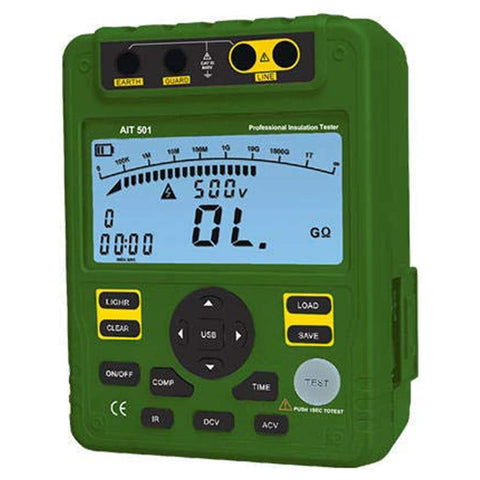

Rishabh Digital Insulation Tester 5KV AIT 501

Rishabh Digital Insulation Tester 5KV AIT 501


₹ 33,000.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

FREE Shipping
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The Agam AIT 501 is the compact insulation resistance tester with diagnostic features like PI, DAR

  • When carrying out insulation resistance measurements this device uses test voltages of 500V, 1000V, 2500V and 5000V

  • At 500V this tester can carry out insulation resistance measurements from 1MOhms to 20GOhms, it carries out this measurement at 5MOhms to 1000GOhms

  • The tester can also be used to carry out AC/DC voltage measurements and low resistance testing

  • The AIT 501 is an autoranging device and will automatically choose the applicable range depending on the test

  • It also includes a large, backlit LCD screen, auto power down function when left idle and includes a USB interface for using the tester to download data to PC

  • To accompany USB connectivity the AIT 501 also includes datalogging capabilities

  • When displaying testing results the AIT 501 uses both numerical and analogue bar graph representation of the test results

  • It also allows users to carry out comparisons, polarisation index calculations and dielectric absorption calculations

  • This insulation resistance tester is CAT III 600V, EN 61010-1 and EN 61326-1 compliant

  • An ideal tool for Insulation testing designed smartly

Product Specification

Brand

Rishabh

Product Type

Digital Insulation Tester

Product Model

AIT 501

Display Type

Analog

Test Voltages

500V, 1000V, 2500V, 5000V

Test Voltage Accuracy

0% to 20%

500v Range (accuracy)

1MOhm to 20GOhm (± 3%+5)

1000v Range (accuracy)

2MOhm to 40GOhm (± 3%+5)

2500v Range (accuracy)

5MOhm to 100GOhm (± 3%+5)

5000v Range (accuracy)

10MOhm to 1000GOhm (± 3%+5)

Short Circuit Current

1.8 mA

Ac/ Dc Voltage

600V

Low Resistance

0.1Ohm to 999.9Ohm

Power

1.5V Alkaline Batteries (LR6) x 8

Operating Temperature

-10 to 40 °C

Storage Temperature

-20 to 60° C

Lcd Size

123mm x 58mm

Dimensions (h X W X L)

202 x 155 x 94 mm

Net Weight

Approx. 2kg (including battery)

Warranty

As Per Manufacturer Terms And Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Insulation Tester

Manufacturer Details

Rishabh Enterprises, 16/4, Rani Jhansi Road, Behind Guru Nanak Bearing Marketing, Motia Khan, Pahar Ganj, New Delhi , Central Delhi, Delhi-110055, India

Packer Details

Rishabh Enterprises, 16/4, Rani Jhansi Road, Behind Guru Nanak Bearing Marketing, Motia Khan, Pahar Ganj, New Delhi , Central Delhi, Delhi-110055, India

Country of Origin

India
