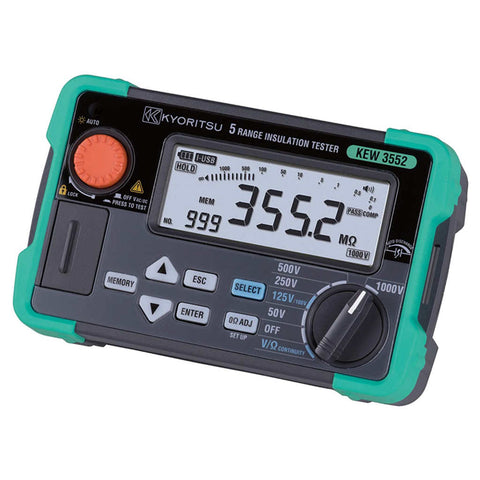

Kyoritsu Digital Insulation/Continuity Tester With Memory Function 3552

Kyoritsu Digital Insulation/Continuity Tester With Memory Function 3552


₹ 87,740.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • World’s fastest measurement speed (0.5 sec.)

  • Six ranges available for insulation

  • Resistance test (50/100/125/250/500/1000 V)

  • nsulation measurement up to 40GΩ

  • Diagnostic Insulation Test : PI, DAR

Product Specification

Brand

Kyoritsu

Product Type

Insulation Tester Digital

Product Model

3552

Insulation Resistance

Test Voltage

50V/100V/125V/250V/500V/1000V

Measuring Range<Br>(Auto Range)

100.0MΩ50V
200.0MΩ
100V
250.0MΩ
125V
500.0MΩ
250V
20.00GΩ
500V
40.00GΩ
1000V

Mid-Scale Value

2MΩ50V
5MΩ
100V/125V
10MΩ
250V
100MΩ
500V
200MΩ
1000V

First Effective Measuring Range

0.100 10.00MΩ50V
0.100
20.00MΩ100V
0.100
25.00MΩ125V
0.100
50.0MΩ250V
0.100
500MΩ500V
0.100
1000MΩ1000V

Accuracy

±2%rdg ±2dgt

Second Effective Measuring Ranges

0.050 ~ 0.099MΩ50V/100V/125V/250V/500V/1000V
10.01 ~ 100.0MΩ
50V
20.01 ~ 200.0MΩ
100V
25.01 ~ 250.0MΩ
125V
50.1 ~ 500MΩ
250V
501 ~ 2000MΩ
500V
1001 ~ 4000MΩ
1000V

Accuracy

±5%rdg (0.050 ~ 0.099MΩ: ±2%rdg±4dgt)

Rated Current

1.0 ~ 1.1mA

Output Short Circuit Current

1.5mA max

Ω / Continuty

Auto Range

40.00/400.0/4000Ω

Accuracy

±2.5%rdg ±8dgt

Output Voltage On Open Circuit

5V4~6.9V

Output Short Circuit Current

200mA max

Voltage

Voltage Range

AC 2.0~600V45~65Hz)
DC -2.0~-600V +2.0~+600V

Accuracy

±1%rdg ±4dgt

General

Applicable Standards

IEC61010 CATⅢ 600V/CAT IV 300V
IEC61557-1,2,4 IEC61326-1,-2-2 IEC60529
IP40

Power Source

LR6/R6AA)(1.5Vx4

Communication Interface

USB

Dimensions / Weight

97(L) x 156(W) x 46(D) mm / 490g approxincluding battery

Included Accessories

7260 Test leads with remote control switch, 7261A Test leads with alligator clip , 8017A Extension prod long , 9173 Carrying case ,9121 Shoulder

strap , LR6 AA 1.5V x4, Instruction manual

Warranty

As Per Manufacturer TeRMS And Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Insulation Tester

Manufacturer Details

Kyoritsu 480 Sakado, Uwa-cho, Seiyo City, Ehime, 797-0045 Japan

Importer Details

Kyoritsu KEW India Instruments PVT. LTD. 4, Sardar Patel Nagar, Navrangpura, Ahmedabad, Gujarat 380006

Country of Origin

Japan
