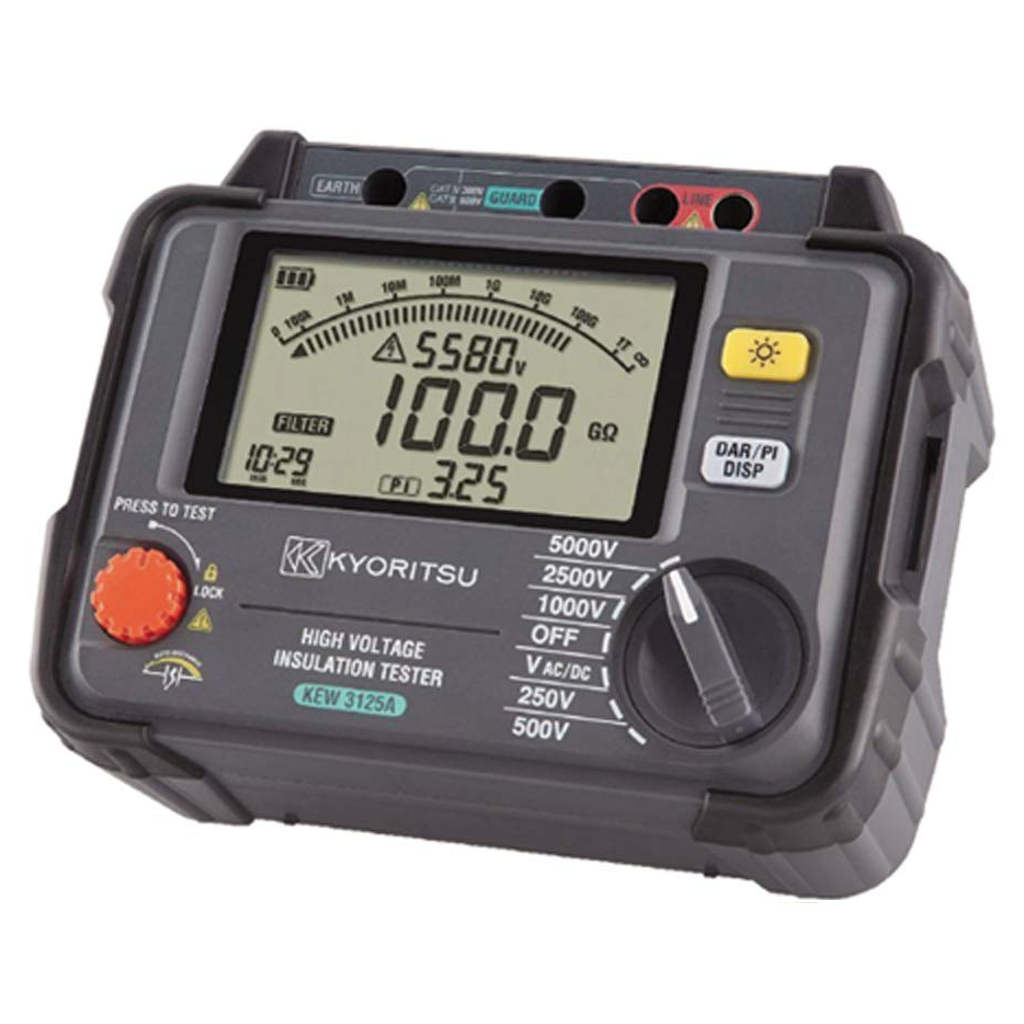

Kyoritsu Digital High Voltage Insulation Tester 5KV 3125A

Kyoritsu Digital High Voltage Insulation Tester 5KV 3125A


₹ 140,820.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Insulation Resistance up to 1TΩ

  • Short-Circuit Current up to 1.5mA

  • Wide Test Voltage from 250V to 5000V

  • Diagnosis Function of PI and DAR

  • Newly-designed alligator clip

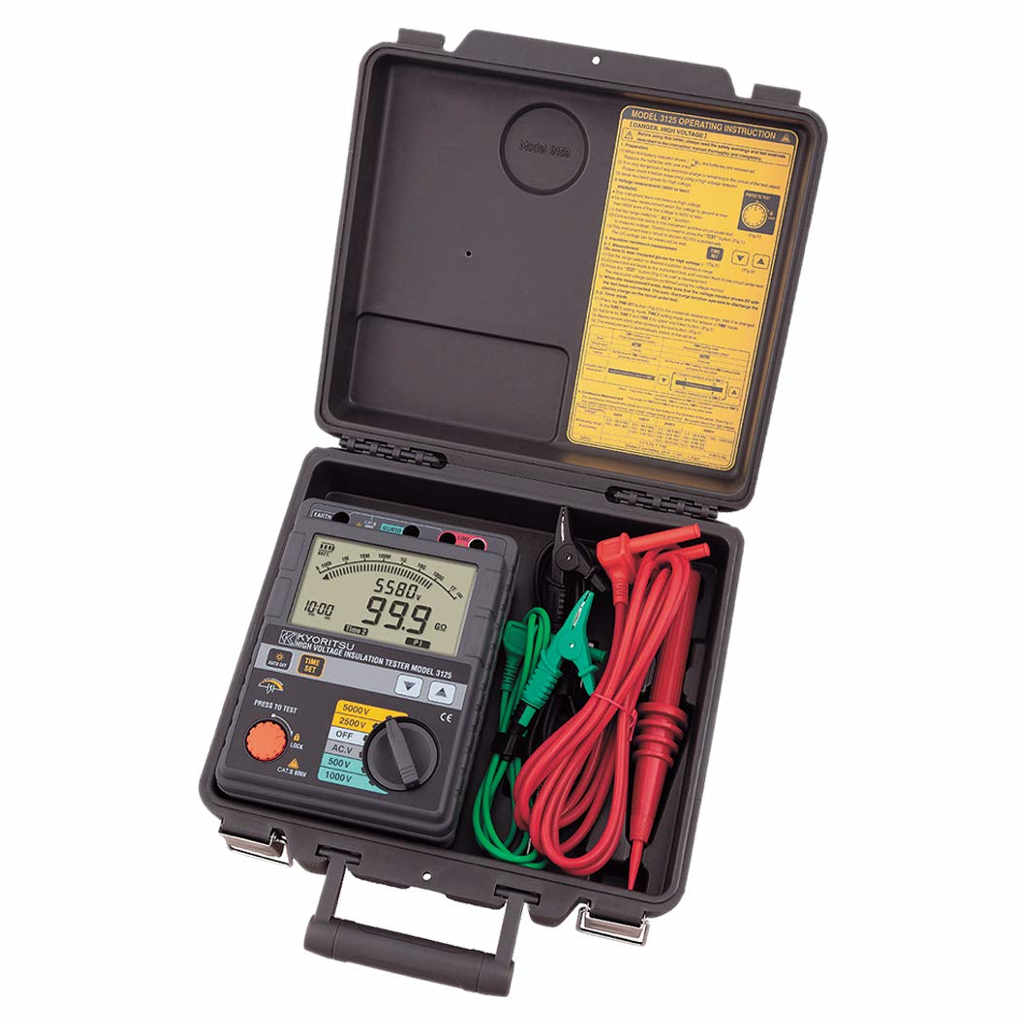

  • It comes with a tough hard case

  • Filter function reduces noise interference for obtaining stable measurement

  • Large display with Bar Graph indication and backlight

  • Live voltage warning

  • Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V

Product Specification

Brand

Kyoritsu

Product Type

Insulation Tester Digital

Product Model

3125A

Insulation Resistance

Rated voltage

250V

500V

1000V

2500V

5000V

Accuracy

0.0 - 100.0MΩ

0.0 - 99.9MΩ
80 - 1000M Ω

0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 2.00G Ω

0.0 - 99.9MΩ
80 - 999MΩ
0.80 – 9.99GΩ

8.0- 100.0GΩ

0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 9.99GΩ
8.0 - 99.9GΩ
80 - 1000GΩ

±5%rdg±3dgt

±5%rdg±3dgt

±5%rdg±3dgt

±5%rdg±3dgt

±5%rdg±3dgt
±20%rdg
(100GΩ or more)

Short Circuit Current

1.5mA

Output Voltage

Accuracy

±10%

-10 - +20%

0 - +20%

Monitor

±10%rdg±20V

Voltage Measurement

Measuring Range

AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V

Accuracy

±2%rdg±3dgt

General

Applicable Standards

IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2,
IEC 61010-031, IEC 61326-1, 2-2

Power Source

DC12V : LR14/R14 × 8pcs

Dimensions

177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Hard case)

Weight

3125A: 1.9kg approx. (including batteries)
4kg approx. (including accessories)

Included Accessories

7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m), 8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case), LR14 (Alkaline battery size C) × 8, Instruction manual

Warranty

As Per Manufacturer TeRMS And Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Insulation Tester

Manufacturer Details

Kyoritsu 480 Sakado, Uwa-cho, Seiyo City, Ehime, 797-0045 Japan

Importer Details

Kyoritsu KEW India Instruments PVT. LTD. 4, Sardar Patel Nagar, Navrangpura, Ahmedabad, Gujarat 380006

Country of Origin

Japan
